18282-2SG-311

Active

Conxall/Switchcraft

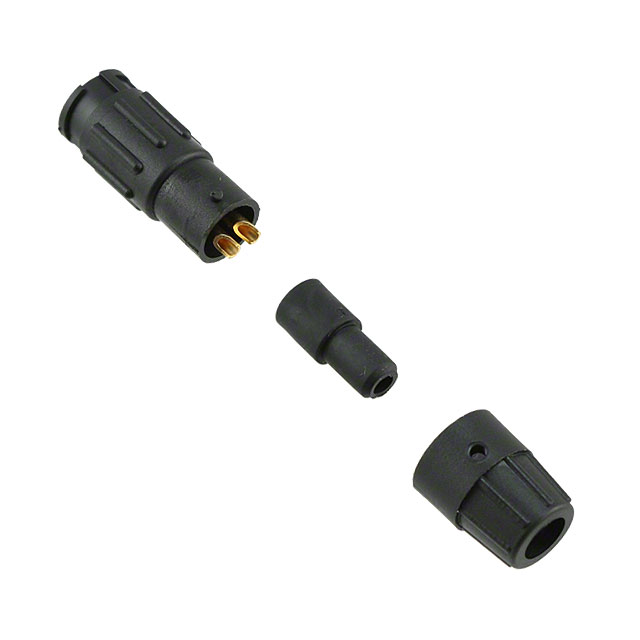

CONN RCPT FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	18282-2SG-311	18282-2S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Current Rating (Amps)	Contact Finish - Mating	Orientation	Backshell Material, Plating	Features	Connector Type	Shielding	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Fastening Type	Mounting Type	Contact Material	Applications	Material Flammability Rating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Number of Positions	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 18282-2SG-318	7.5 A	Gold	Keyed	Thermoplastic	Backshell	Receptacle, Female Sockets	Unshielded	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Black	Bayonet Lock	Free Hanging (In-Line)	Copper Alloy	Data, Industrial, Instrumentation, Medical	UL94 HB	4.57 mm	0.18 in	0.2 in	5.08 mm	600 VAC	2	Plastic
Conxall/Switchcraft 18282-2SG-311	7.5 A	Gold	Keyed	Thermoplastic	Backshell	Receptacle, Female Sockets	Unshielded	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Black	Bayonet Lock	Free Hanging (In-Line)	Copper Alloy	Data, Industrial, Instrumentation, Medical	UL94 HB					600 VAC	2	Plastic	2.29 mm	0.09 in, 0.14 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
