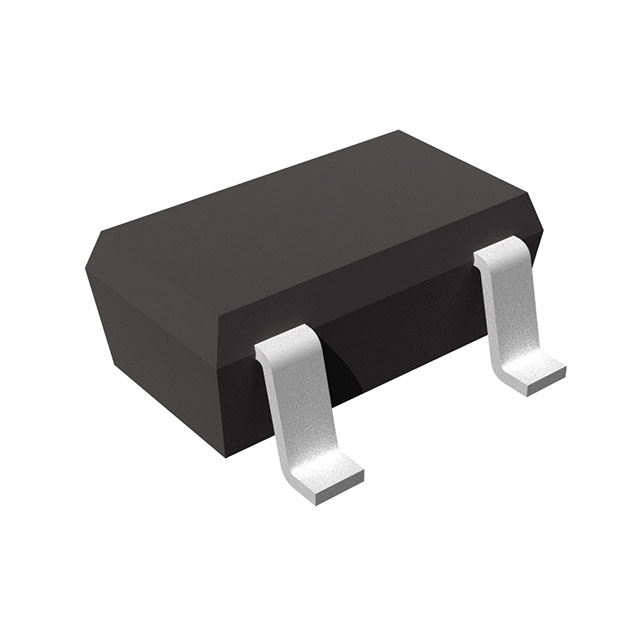

R3130N22EC-TR-FE

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL SOT23-3

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL SOT23-3

Technical Specifications

Parameters and characteristics for this part

Specification	R3130N22EC-TR-FE

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Totem Pole, Push-Pull
Package / Case	SOT-23-3, TO-236-3, SC-59
Reset	Active Low
Reset Timeout	216 ms
Supplier Device Package	SOT-23-3
Type	Voltage Detector
Voltage - Threshold	2.2 V

Part	Reset	Type	Supplier Device Package	Output	Voltage - Threshold	Operating Temperature [Max]	Operating Temperature [Min]	Reset Timeout	Package / Case	Mounting Type	Number of Voltages Monitored
Nisshinbo Micro Devices Inc R3130N22EC-TR-FE	Active Low	Voltage Detector	SOT-23-3	Push-Pull Totem Pole	2.2 V	85 °C	-40 °C	216 ms	SC-59 SOT-23-3 TO-236-3	Surface Mount	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3
