MS3101F14S-6P

Active

ITT Cannon, LLC

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Mating	Mounting Type	Primary Material	Shell Size - Insert	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Features	Number of Positions	Shell Finish	Current Rating (Amps)	Shell Material	Color	Grade	Ingress Protection	Qualification
ITT Cannon, LLC MS3101F14S-2P	Silver	Free Hanging (In-Line)	Metal	14S-2	200 VAC 250 VDC	-55 °C	125 °C	Male Pins Receptacle	N	Cable Clamp	4	Olive Drab Cadmium	22 A	Aluminum Alloy	Olive Drab	Military	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3101F14S-5PF187	Silver	Free Hanging (In-Line)	Metal	14S-5	200 VAC 250 VDC	-55 °C	125 °C	Male Pins Receptacle	N	Cable Clamp		Olive Drab Cadmium	22 A	Aluminum Alloy	Olive Drab	Military	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3101F14S-6P	Silver	Free Hanging (In-Line)	Metal	14S-6	200 VAC 250 VDC	-55 °C	125 °C	Male Pins Receptacle	N	Cable Clamp	6	Olive Drab Cadmium	22 A	Aluminum Alloy	Olive Drab	Military	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3101F14S-7P	Silver	Free Hanging (In-Line)	Metal	14S-7	500 VAC 700 VDC	-55 °C	125 °C	Male Pins Receptacle	N	Cable Clamp		Olive Drab Cadmium	22 A	Aluminum Alloy	Olive Drab	Military	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3101F14S-9P	Silver	Free Hanging (In-Line)	Metal	14S-9	500 VAC 700 VDC	-55 °C	125 °C	Male Pins Receptacle	N	Cable Clamp	2	Olive Drab Cadmium	22 A	Aluminum Alloy	Olive Drab	Military	Environment Resistant	MIL-DTL-5015

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

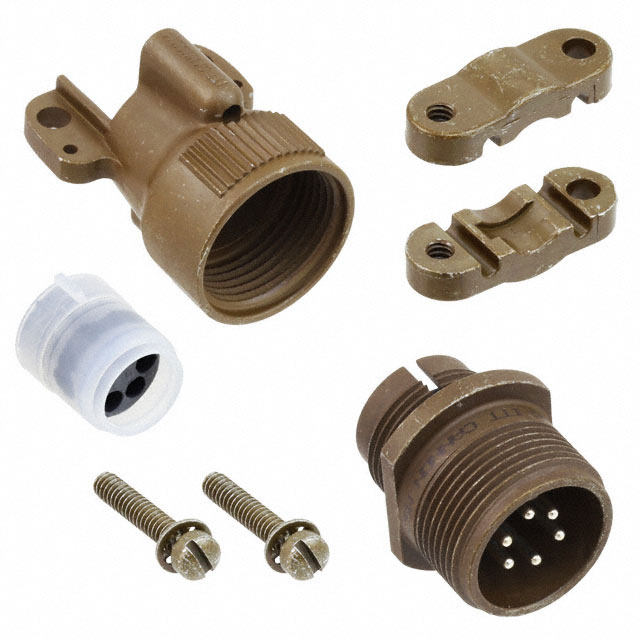

6 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available
