GBTAAT0-HM18SN-0000 - GBTAAT0-ED08SN-0000

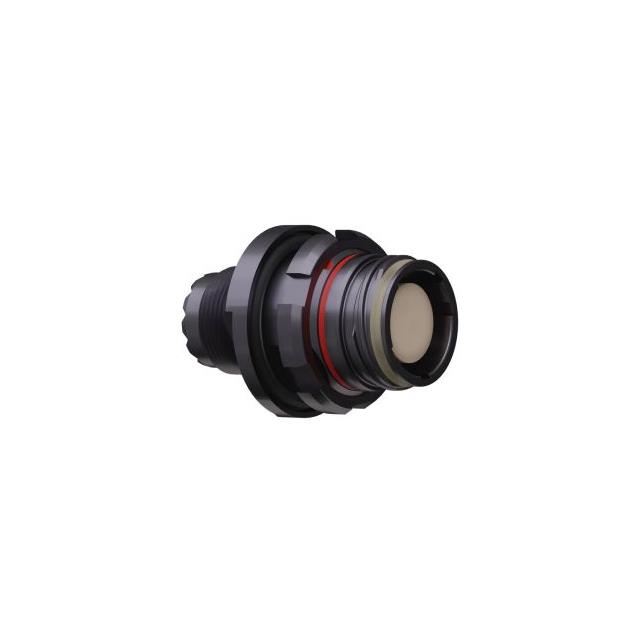

GBTAAT0-HM18SN-0000

Active
ODU

ODU AMC SERIES T RECEPTACLE FOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetODU AMC Series T Catalog+1
GBTAAT0-HM18SN-0000 - GBTAAT0-ED08SN-0000

GBTAAT0-HM18SN-0000

Active
ODU

ODU AMC SERIES T RECEPTACLE FOR

Deep-Dive with AI

DocumentsDatasheetODU AMC Series T Catalog+1

Technical Specifications

Parameters and characteristics for this part

SpecificationGBTAAT0-HM18SN-0000
ColorSilver
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact Finish Thickness - Mating1.27 µm
Contact Finish Thickness - Mating50 µin
Contact MaterialCopper Alloy
Current Rating (Amps)7.5 A, 5 A
Fastening TypeThreaded, Push-Pull
FeaturesCoupling Nut, Backshell
Ingress ProtectionIP68, IP69K
Insert MaterialPolyetheretherketone (PEEK)
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeFree Hanging (In-Line), Panel Mount
Number of Positions18
Operating Temperature [Max]347 °F
Operating Temperature [Min]-65 ░C
OrientationA
Primary MaterialMetal
Shell FinishTin Nickel
Shell MaterialAluminum
Shell Size - Insert12
ShieldingShielded
TerminationCrimp
Voltage Rating50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 178.89
10$ 165.77

Description

General part information

GBTAAT0-H Series

18 Position Circular Connector Receptacle, Female Sockets Crimp
