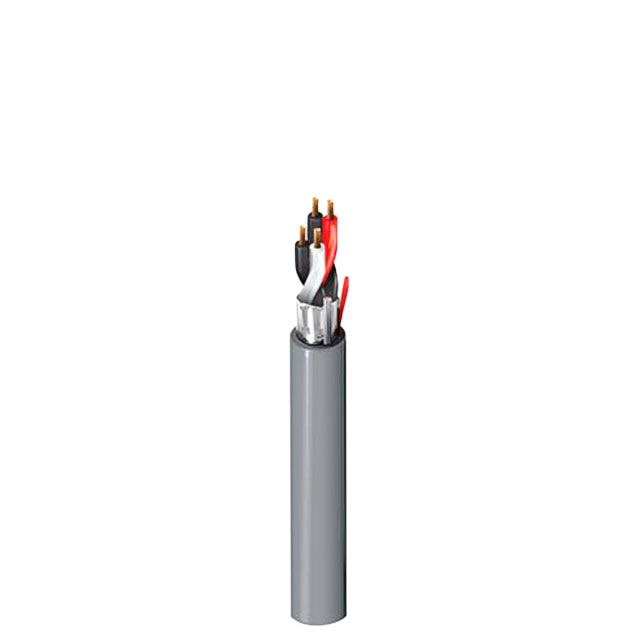

6341UE 877U1000
ActiveBelden Inc.
MULTI-PAIR 4COND 18AWG NAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6341UE 877U1000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 0.253 in |
| Jacket (Insulation) Diameter [diameter] | 6.43 mm |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | UL Style CMP |
| Usage | Sound, Security |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.44 | |
Description
General part information
6341UE Series
4 (2 Pair) Conductor Multi-Pair Cable Natural 18 AWG 1000.0' (304.8m)
