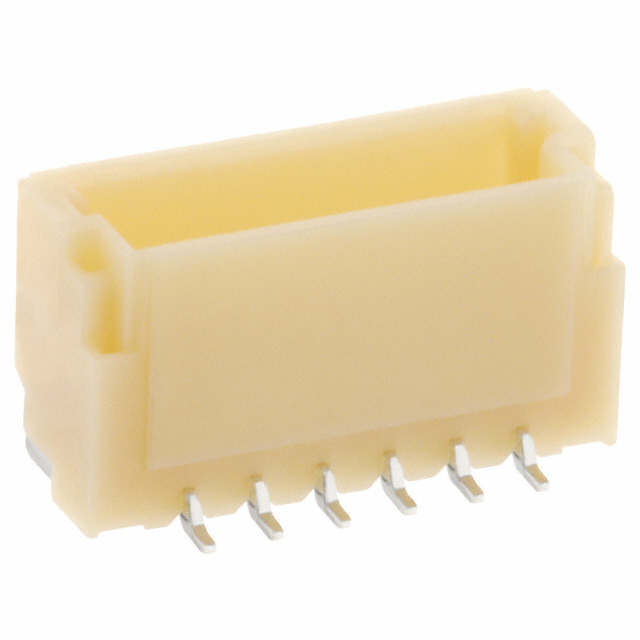

BM06B-SRSS-TB

Active

JST Sales America Inc.

CONN HEADER SMD 6POS 1MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 6POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM06B-SRSS-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Termination	Fastening Type	Connector Type	Shrouding	Material Flammability Rating	Number of Positions Loaded	Style	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Material	Contact Material	Voltage Rating	Contact Shape	Contact Type	Insulation Color	Number of Positions	Number of Rows	Insulation Height	Insulation Height
JST Sales America Inc. BM06B-SRSS-TB	Solder	Push-Pull	Header	Shrouded - 4 Wall	UL94 V-0	All	Board to Cable/Wire	Tin	Surface Mount	0.039 in	1 mm	-25 °C	85 °C	Solder Retention	Nylon Polyamide (PA)	Copper Alloy	50 V	Square	Male Pin	Natural	6	1	0.167 in	4.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 6 position 0.039" (1.00mm)
