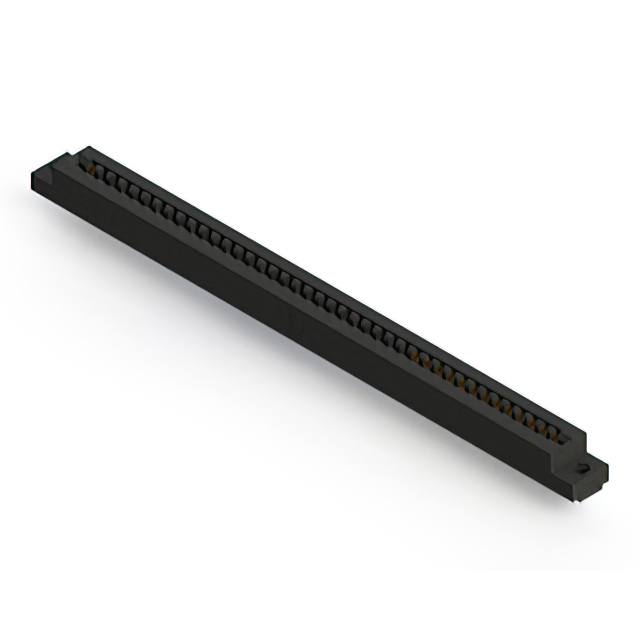

857-041-553-104
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-041-553-104
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-041-553-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
857-041 Series
...
| Part | Pitch [x] | Pitch [x] | Termination | Contact Material | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Material - Insulation | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Termination Rows | Gender | Mounting Type | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Solder | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 125 °C | -40 °C | Single | Polyphenylene Sulfide (PPS) | Black | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1 | 1 | Female | Through Hole | Tin | 41 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Polyphenylene Sulfide (PPS) | Black | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 1 | Female | Through Hole Right Angle | Gold | 82 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Wire Wrap | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Polyphenylene Sulfide (PPS) | Black | Side Mount Opening Unthreaded | 2 | 1 | Female | Through Hole | Gold | 82 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 125 °C | -40 °C | Single | Polyphenylene Sulfide (PPS) | Black | 1 | 1 | Female | Through Hole | Gold | 41 | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 125 °C | -40 °C | Single | Polyphenylene Sulfide (PPS) | Black | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1 | 1 | Female | Through Hole Right Angle | Tin | 41 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder Eyelet(s) | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Polyphenylene Sulfide (PPS) | Black | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | 1 | Female | Through Hole | Gold | 82 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 0.156 in | 3.96 mm | Solder Eyelet(s) | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Polyphenylene Sulfide (PPS) | Black | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 2 | 1 | Female | Through Hole | Tin | 82 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Polyphenylene Sulfide (PPS) | Black | Flush Mount M3 Threaded Insert Top Opening | 2 | 1 | Female | Through Hole Right Angle | Tin | 82 | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Polyphenylene Sulfide (PPS) | Black | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 2 | 1 | Female | Through Hole Right Angle | Gold | 82 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 0.156 in | 3.96 mm | Solder Eyelet(s) | Copper Alloy | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Polyphenylene Sulfide (PPS) | Black | Flush Mount M3 Threaded Insert Top Opening | 2 | 1 | Female | Through Hole | Gold | 82 | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-041 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
