XM3A-3721

Active

Omron Electronics Inc-EMC Div

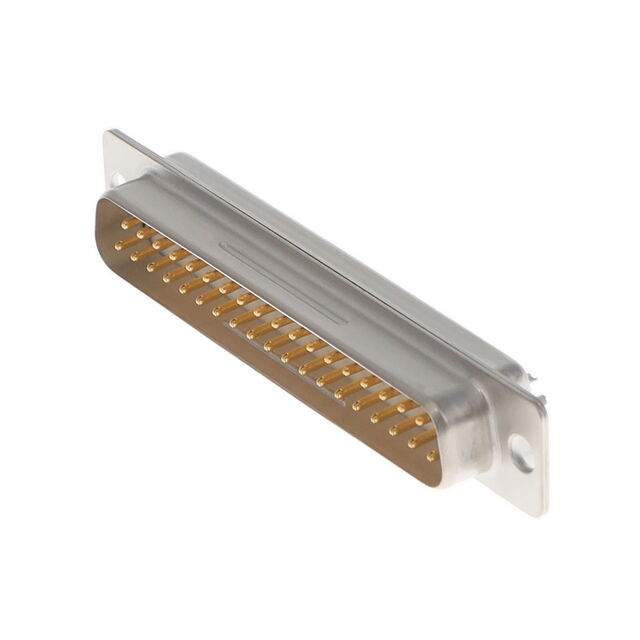

CONN D-SUB PLUG 37POS SLDR CUP

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 37POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XM3A-3721	XM3A Series

Color	White	White
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	16 µin	16 µin
Contact Finish Thickness	0.41 µm	0.41 µm
Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded	Shielded
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	37	15 - 37
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)	4 (DC, C)
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout	-	DB, B
Shell Size, Connector Layout	-	3
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	28 AWG	28 AWG
Wire Gauge [Min]	22 AWG	22 AWG

CONN D-SUB PLUG 15POS SLDR CUP

Part	Material Flammability Rating	Color	Contact Type	Dielectric Material	Shell Material, Finish	Connector Type	Features	Number of Positions	Flange Feature	Voltage Rating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mounting Type	Contact Material	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Wire Gauge [Max]	Wire Gauge [Min]
Omron Electronics Inc-EMC Div XM3A-1521	UL94 V-0	White	Signal	Polybutylene Terephthalate (PBT), Glass Filled	Nickel Plated, Steel	Male Pins, Plug	Shielded	15	Housing/Shell (Unthreaded)	300 VDC	2	105 ░C	-55 °C	Gold	Free Hanging (In-Line)	Brass	2	16 µin	0.41 µm	D-Sub	5 A
Omron Electronics Inc-EMC Div XM3A-2521	UL94 V-0	White	Signal	Polybutylene Terephthalate (PBT), Glass Filled	Nickel Plated, Steel	Male Pins, Plug	Shielded		Housing/Shell (Unthreaded)	300 VDC	2	105 ░C	-55 °C	Gold	Free Hanging (In-Line)	Brass		16 µin	0.41 µm	D-Sub	5 A	B, DB	3
Omron Electronics Inc-EMC Div XM3A-3721	UL94 V-0	White	Signal	Polybutylene Terephthalate (PBT), Glass Filled	Nickel Plated, Steel	Male Pins, Plug	Shielded	37	Housing/Shell (Unthreaded)	300 VDC	2	105 ░C	-55 °C	Gold	Free Hanging (In-Line)	Phosphor Bronze		16 µin	0.41 µm	D-Sub	5 A			4 (DC, C)	28 AWG	22 AWG
