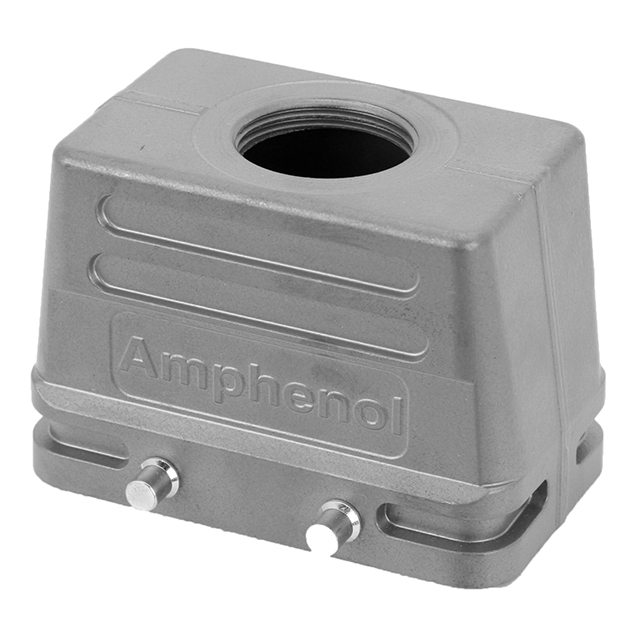

C146 50R010 600 1

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE10 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE10 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C146 50R010 600 1

Connector Type	Hood
Housing Color	Gray
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	51 mm
Size / Dimension [z]	2.008 "
Style	Top Entry
Thread Size	M25

Part	Housing Color	Thread Size	Style	Ingress Protection	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size	Connector Type	Housing Material
Amphenol Tuchel Industrial C146 50R010 600 1	Gray	M25	Top Entry	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	125 °C	-40 °C	2.874 in	1.693 in	73 mm	51 mm	2.008 "	43 mm	E10	Hood	Aluminum Alloy Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 23.74

General part information

Hood Connector Top Entry M25 E10 IP65 - Dust Tight, Water Resistant
