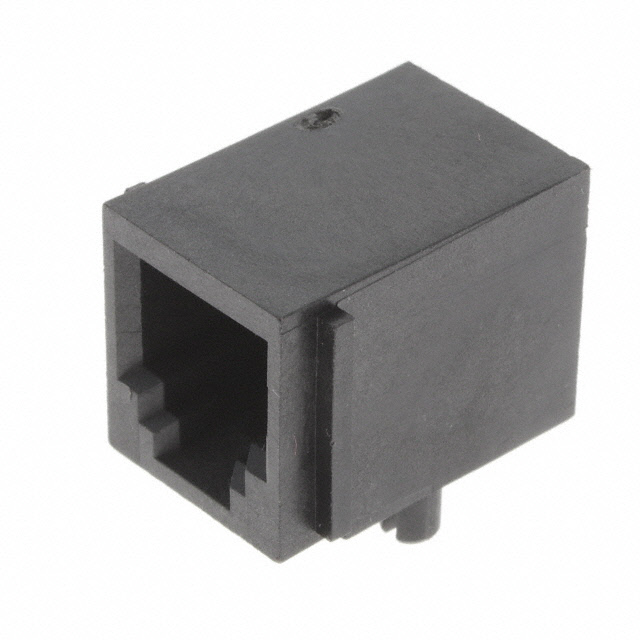

SS63600-005F

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 6P6C R/A UNSHLD

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 6P6C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS63600-005F

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Lock, Panel Stops
Housing Material	Thermoplastic
Ingress Protection	Waterproof
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Number of Ports	Contact Finish	Ingress Protection	Contact Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	LED Color	Housing Material	Termination	Shielding	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features	Tab Direction	Number of Positions/Contacts
BEL MAGNETIC SOLUTIONS SS63600-005F	1	Gold	Waterproof	Copper Alloy	90 °	85 °C	-40 °C	Jack	Does Not Contain LED	Thermoplastic	Solder	Unshielded	Through Hole	1	0.76 Ám	30 Áin	Board Lock Panel Stops	Down	6p6c (RJ11 RJ12 RJ14 RJ25)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded

Technical documentation and resources

No documents available
