8135 060100

Active

Belden Inc.

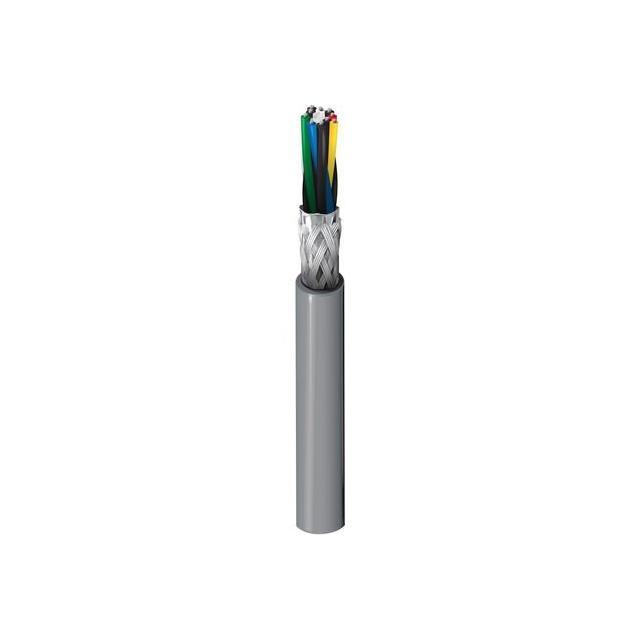

MULTI-PAIR 10COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 10COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8135 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.32 mm
Jacket (Insulation) Diameter [diameter]	0.288 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Usage	Shield Material	Features	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Shield Coverage	Shield Type	Number of Conductors	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Conductor Insulation	Length [x]	Length [x]
Belden Inc. 8135 0601000	Computer	Aluminum Copper Tinned	Drain Wire	UL Style 2919	7.32 mm	0.288 in	0.889 mm	0.035 in	Multi-Pair	Chrome	65 % 100 %	Braid Foil	10	Poly-Vinyl Chloride (PVC)	36 AWG	7	1000 ft	304.8 m	28 AWG	-30 ░C	80 C	Copper Tinned	Foam Polyethylene (FPE)
Belden Inc. 8135 060100	Computer	Aluminum Copper Tinned	Drain Wire	UL Style 2919	7.32 mm	0.288 in	0.889 mm	0.035 in	Multi-Pair	Chrome	65 % 100 %	Braid Foil	10	Poly-Vinyl Chloride (PVC)	36 AWG	7			28 AWG	-30 ░C	80 C	Copper Tinned	Foam Polyethylene (FPE)	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 8.15

General part information

10 (5 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 100.0' (30.5m)
