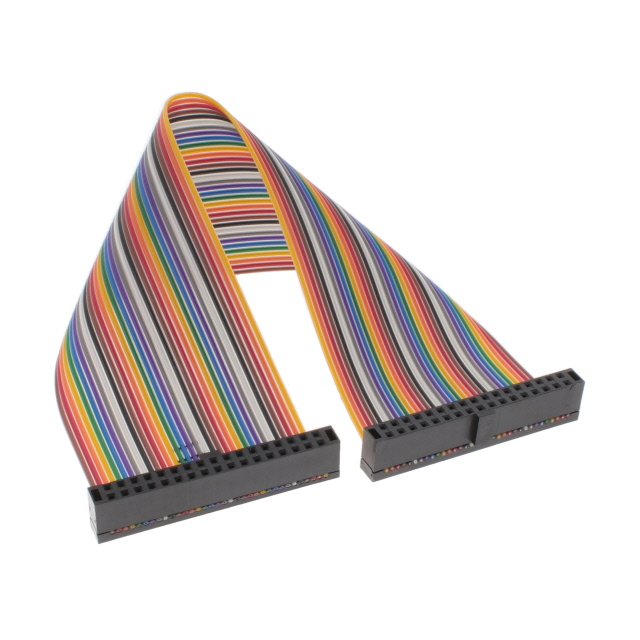

HCSD-17-D-08.00-01-N - HCSD-17-D-08.00-01-N

HCSD-17-D-08.00-01-N

Active
Samtec Inc.

CABLE ASSY, IDC RCPT - RCPT, 203.2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetHCSD Datasheet+2
HCSD-17-D-08.00-01-N - HCSD-17-D-08.00-01-N

HCSD-17-D-08.00-01-N

Active
Samtec Inc.

CABLE ASSY, IDC RCPT - RCPT, 203.2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetHCSD Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationHCSD-17-D-08.00-01-N
Cable TerminationIDC
ColorRibbon, Multiple
Connector TypeSocket to Socket
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPolarizing Key
Length0.667 ft
Length8 in
Length203.2 mm
Number of Positions34
Number of Rows2
Pitch - Cable0.05 "
Pitch - Cable1.27 mm
Pitch - Connector0.1 in
Pitch - Connector2.54 mm
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 30.69
10$ 23.69
25$ 21.47
50$ 19.97
100$ 18.60
250$ 17.00
500$ 15.92
NewarkEach 1$ 19.35
10$ 17.91
25$ 16.11
50$ 15.66
100$ 13.77
250$ 12.87
500$ 12.60

Description

General part information

HCSD-17 Series

34 Position Cable Assembly Rectangular Socket to Socket 0.667' (203.20mm, 8.00")
