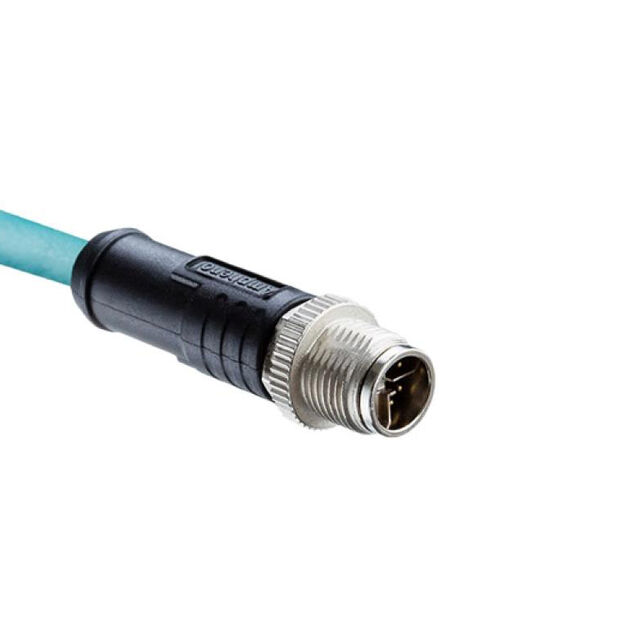

MSXS-08BMMM-SL7X03

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, X CODE, PROFINET, ETHERNET ETHERCAT, METAL, 0.5A, 08 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGH

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, X CODE, PROFINET, ETHERNET ETHERCAT, METAL, 0.5A, 08 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGH

Technical Specifications

Parameters and characteristics for this part

Specification	MSXS-08BMMM-SL7X03

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	X
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Round
Color	Green
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	9.84 ft
Length [x]	3 m
Shielding	Shielded
Usage	Industrial Environments, Cat6a

Part	Ingress Protection	2nd Connector Type	1st Connector Type	1st Connector Orientation	Color	Usage	1st Connector Shell Size - Insert	1st Connector Gender	Cable Type	1st Connector Mounting Type	1st Connector Number of Positions Loaded	Assembly Configuration	1st Connector Number of Positions	Shielding	Length [x]	Length [x]
Amphenol LTW MSXS-08BMMM-SL7X10	IP67 - Dust Tight Waterproof	Wire Leads	Receptacle	X	Green	Cat6a Industrial Environments	M12	Male Pins	Round	Free Hanging (In-Line)	All	Standard	8 positions	Shielded
Amphenol LTW MSXS-08BMMM-SL7X03	IP67 - Dust Tight Waterproof	Wire Leads	Receptacle	X	Green	Cat6a Industrial Environments	M12	Male Pins	Round	Free Hanging (In-Line)	All	Standard	8 positions	Shielded	9.84 ft	3 m
Amphenol LTW MSXS-08BMMM-SL7X01	IP67 - Dust Tight Waterproof	Wire Leads	Receptacle	X	Green	Cat6a Industrial Environments	M12	Male Pins	Round	Free Hanging (In-Line)	All	Standard	8 positions	Shielded	3.28 ft	1 m
Amphenol LTW MSXS-08BMMM-SL7X02	IP67 - Dust Tight Waterproof	Wire Leads	Receptacle	X	Green	Cat6a Industrial Environments	M12	Male Pins	Round	Free Hanging (In-Line)	All	Standard	8 positions	Shielded	6.56 ft	2 m
Amphenol LTW MSXS-08BMMM-SL7X05	IP67 - Dust Tight Waterproof	Wire Leads	Receptacle	X	Green	Cat6a Industrial Environments	M12	Male Pins	Round	Free Hanging (In-Line)	All	Standard	8 positions	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 9.84' (3.00m)
