CF14US-02-04-02

Active

Igus

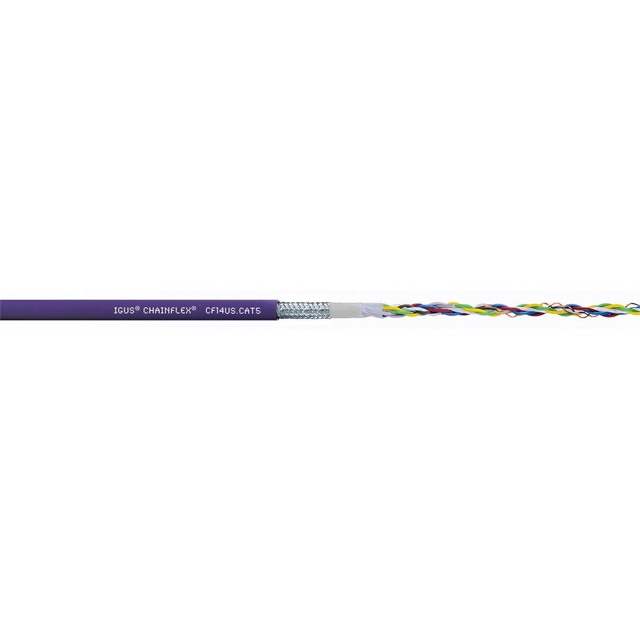

CABLE CAT5E 8COND 26AWG VIO FEET

Search across all available documentation for this part.

Active

Igus

CABLE CAT5E 8COND 26AWG VIO FEET

Technical Specifications

Parameters and characteristics for this part

Specification	CF14US-02-04-02

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Features	Oil Resistant, UV Resistant, Flame Retardant
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Violet
Length	Enter Number of Feet in Order Quantity
Number of Conductors	8
Ratings	UL Style 20233
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Network
Voltage	300 V
Wire Gauge	26 AWG

CABLE CAT5E 8COND 26AWG VIO FEET

Part	Jacket Color	Features	Usage	Jacket (Insulation) Material	Cable Type	Length	Conductor Insulation	Wire Gauge	Shield Type	Shield Material	Number of Conductors	Voltage	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Ratings
Igus CF14US-02-04-02	Violet	Flame Retardant, Oil Resistant, UV Resistant	Network	Polyurethane (PU)	Multi-Pair, Cat5e	Enter Number of Feet in Order Quantity	Foam Polyethylene (FPE)	26 AWG	Braid	Copper, Tinned	8	300 V	90 %	7.62 mm	0.3 in	Copper, Bare	UL Style 20233

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Violet 26 AWG Braid Enter Number of Feet in Order Quantity
