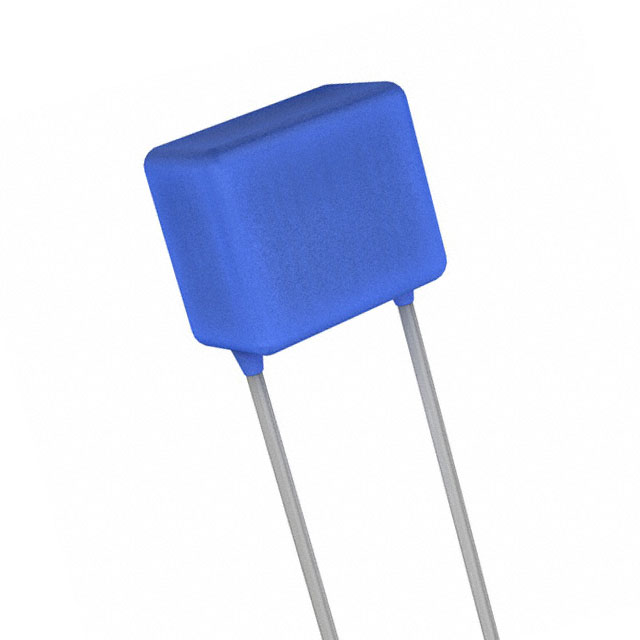

20HV23B273MN

Active

KEMET

CAP CER 0.027UF 2KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.027UF 2KV X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

CAP CER 0.027UF 2KV X7R RADIAL

Part	Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Package / Case	Lead Style	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Voltage - Rated	Applications
KEMET 20HV23B273MN	20 %	Through Hole	0.4 in	10.16 mm	0.375 in	9.52 mm	Radial	Straight	0.027 µF	0.47 in	0.27 in	6.86 mm	11.94 mm	X7R	High Voltage	-55 °C	125 °C	2 kV	2000 V	SMPS Filtering

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.027 µF ±20% 2000V (2kV) Ceramic Capacitor X7R Radial

Technical documentation and resources
