FAD1-08015DBMW12

Active

Qualtek

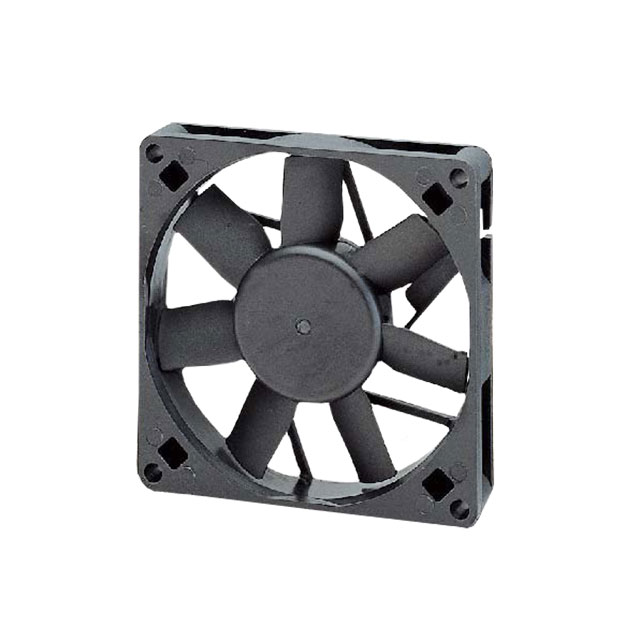

FAN AXIAL 80X15MM 24VDC WIRE

FAD1-08015DBMW12

Active

Qualtek

FAN AXIAL 80X15MM 24VDC WIRE

Description Specifications Series Pricing CAD Documents

Description

General part information

FAD1-08015 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 21.8 CFM (0.610m³/min) 2 Wire Leads

Technical Specifications

Parameters and characteristics for this part

Specification	FAD1-08015DBMW12

Air Flow	21.8 CFM
Approval Agency	cURus, TUV, CE
Bearing Type	Ball
Current Rating	0.08 A
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	24.9 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	960 mW
RPM	2440 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.078 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	21.6 VDC
Weight	0.137 lb
Width	15 mm

FAD1-08015 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Fan Type	RPM	Termination Leads Count	Termination Type	Termination	Bearing Type	Noise	Approval Agency	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Weight	Voltage - Rated	Width	Air Flow	Static Pressure	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Material - Frame	Material - Blade
Qualtek FAD1-08015DHMW12	158 °F	14 °F	960 mW	Tubeaxial	2440 RPM	2 leads	Wire Leads	2 Wire Leads	Hydrodynamic	24.9 dB	CE cURus TUV	80 mm	Square	80 mm	0.137 lb	24 VAC	15 mm	21.8 CFM	0.078 in H2O	26.4 VDC	21.6 VDC	40 mA	Plastic	Plastic
Qualtek FAD1-08015BBMW12	158 °F	14 °F	650 mW	Tubeaxial	2440 RPM	2 leads	Wire Leads	2 Wire Leads	Ball	24.9 dB	CE cURus TUV	80 mm	Square	80 mm	0.137 lb	5 VAC	15 mm	21.8 CFM	0.078 in H2O
Qualtek FAD1-08015BHMW12	158 °F	14 °F	650 mW	Tubeaxial	2440 RPM	2 leads	Wire Leads	2 Wire Leads	Hydrodynamic	24.9 dB	CE cURus TUV	80 mm	Square	80 mm	0.137 lb	5 VAC	15 mm	21.8 CFM	0.078 in H2O	5.5 VDC	4.5 VDC	0.13 A	Plastic	Plastic
Qualtek FAD1-08015DBMW12	158 °F	14 °F	960 mW	Tubeaxial	2440 RPM	2 leads	Wire Leads	2 Wire Leads	Ball	24.9 dB	CE cURus TUV	80 mm	Square	80 mm	0.137 lb	24 VAC	15 mm	21.8 CFM	0.078 in H2O	26.4 VDC	21.6 VDC	0.08 A	Plastic	Plastic
Qualtek FAD1-08015DBHW12	158 °F	14 °F	1.92 W	Tubeaxial	3200 RPM	2 leads	Wire Leads	2 Wire Leads	Ball	34.4 dB	CE cURus TUV	80 mm	Square	80 mm	0.137 lb	24 VAC	15 mm	29.7 CFM	0.122 in H2O	26.4 VDC	21.6 VDC	0.08 A	Plastic	Plastic
Qualtek FAD1-08015CBLW12	158 °F	14 °F	0.36 W	Tubeaxial	2000 RPM	2 leads	Wire Leads	2 Wire Leads	Ball	18.8 dB	CE cURus TUV	80 mm	Square	80 mm	0.137 lb	12 VAC	15 mm	18.3 CFM	0.052 in H2O	13.2 VDC	10.8 VDC	30 mA	Plastic	Plastic
