10090926-P154XLF

Active

Amphenol ICC (FCI)

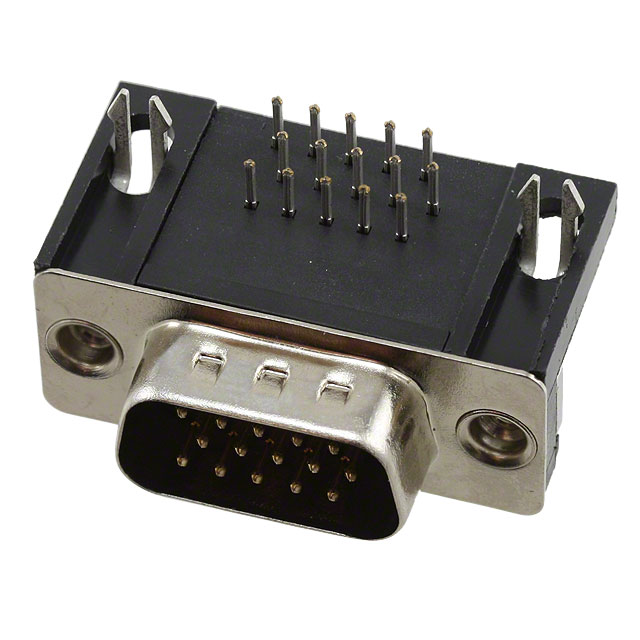

CONN D-SUB HD PLUG 15P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-350 Other Related Document d sub productpresentation Other Related Document +1

10090926-P154XLF

Active

Amphenol ICC (FCI)

CONN D-SUB HD PLUG 15P R/A SLDR

Deep-Dive with AI

Documentsgs-12-350 Other Related Document d sub productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10090926-P154XLF

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

10090926 Series

Part	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Number of Positions	Connector Type	Material Flammability Rating	Contact Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Contact Type	Color	Termination	Connector Style	Backset Spacing	Backset Spacing	Contact Finish	Shell Material, Finish	Features	Mounting Type	Current Rating (Amps)	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Shell Size, Connector Layout [x]	Shell Size, Connector Layout
Amphenol ICC (FCI) 10090926-P626VLF	4	0.76 Ám	30 Áin	250 VDC	62	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	Female Screwlock (4-40) Mating Side
Amphenol ICC (FCI) 10090926-P154VLF				250 VDC	15	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	Female Screwlock (4-40) Mating Side	DE E	1	High Density	Flash
Amphenol ICC (FCI) 10090926-P444XLF				250 VDC	44	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	4-40 Board Side	B DB			Flash	3
Amphenol ICC (FCI) 10090926-P444VLF				250 VDC	44	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	Female Screwlock (4-40) Mating Side	B DB			Flash	3
Amphenol ICC (FCI) 10090926-P624XLF	4			250 VDC	62	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	4-40 Board Side				Flash
Amphenol ICC (FCI) 10090926-P154XLF				250 VDC	15	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	4-40 Board Side	DE E	1	High Density	Flash
Amphenol ICC (FCI) 10090926-P266VLF	2	0.76 Ám	30 Áin	250 VDC	26	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	Female Screwlock (4-40) Mating Side						(DA A) High Density
Amphenol ICC (FCI) 10090926-P446VLF		0.76 Ám	30 Áin	250 VDC	44	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	Female Screwlock (4-40) Mating Side	B DB				3
Amphenol ICC (FCI) 10090926-P624VLF	4			250 VDC	62	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	Female Screwlock (4-40) Mating Side				Flash
Amphenol ICC (FCI) 10090926-P266XLF	2	0.76 Ám	30 Áin	250 VDC	26	Male Pins Plug	UL94 V-0	Copper Alloy	3	105 ░C	-55 °C	Thermoplastic Glass Filled	Signal	Black	Solder	D-Sub High Density	8.89 mm	0.35 in	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	Board Edge Right Angle Through Hole	2.5 A	4-40 Board Side						(DA A) High Density
