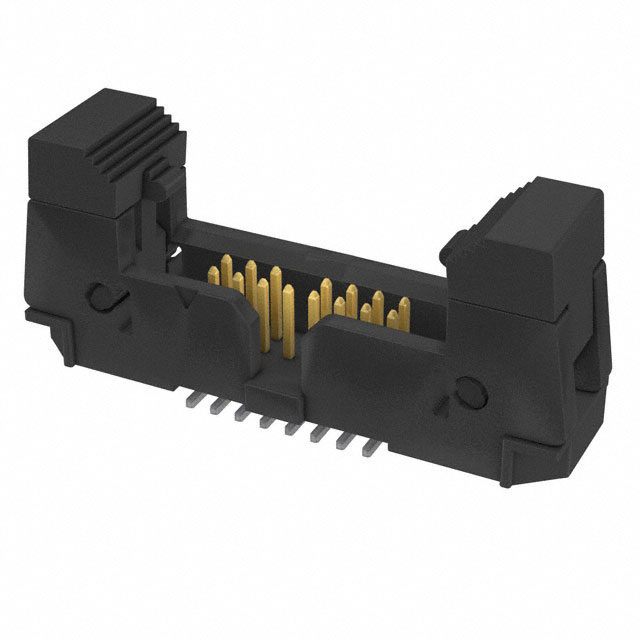

EHF-108-01-F-D-SM-08-P

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 16 POS 1.27MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSHF,ESHF,EHF,ECF Datasheet Datasheet

EHF-108-01-F-D-SM-08-P

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 16 POS 1.27MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

DocumentsSHF,ESHF,EHF,ECF Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-108-01-F-D-SM-08-P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-108 Series

Part	Contact Finish - Mating	Contact Shape	Fastening Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Current Rating (Amps)	Connector Type	Style	Number of Rows	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Termination	Shrouding	Insulation Height	Insulation Height	Contact Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. EHF-108-01-F-D-SM-K-TR	Gold	Square	Latch Lock/Eject Hooks	16	All	3 µin	0.076 µm	Keying Slot Pick and Place	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin
Samtec Inc. EHF-108-01-F-D-SM-K	Gold	Square	Latch Lock/Eject Hooks	16	All	3 µin	0.076 µm	Keying Slot Pick and Place	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin
Samtec Inc. EHF-108-01-F-D-SM-08-P	Gold	Square	Latch Lock/Eject Hooks	16		3 µin	0.076 µm	Keying Slot Pick and Place	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin	15
Samtec Inc. EHF-108-01-LM-D-SM-K	Gold	Square	Latch Lock/Eject Hooks	16	All	10 çin	0.25 çm	Keying Slot Pick and Place	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin
Samtec Inc. EHF-108-01-S-D-SM-TR	Gold	Square	Latch Lock/Eject Hooks	16	All	30 Áin	0.76 Ám	Keying Slot	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin
Samtec Inc. EHF-108-01-L-D-SM-01	Gold	Square	Latch Lock/Eject Hooks	16		10 çin	0.25 çm	Keying Slot	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin	15
Samtec Inc. EHF-108-01-L-D-SM	Gold	Square	Latch Lock/Eject Hooks	16	All	10 çin	0.25 çm	Keying Slot	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin
Samtec Inc. EHF-108-01-F-D	Gold	Square	Latch Lock/Eject Hooks	16	All	3 µin	0.076 µm	Keying Slot	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Through Hole	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin		0.107 "	2.71 mm	0.35 in	8.89 mm
Samtec Inc. EHF-108-01-L-D-SM-P	Gold	Square	Latch Lock/Eject Hooks	16	All	10 çin	0.25 çm	Keying Slot Pick and Place	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Surface Mount	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin
Samtec Inc. EHF-108-01-FM-D	Gold	Square	Latch Lock/Eject Hooks	16	All	3 µin	0.076 µm	Keying Slot	1.75 A	Header	Board to Cable/Wire	2	Tin	-55 °C	125 °C	Phosphor Bronze	3.05 mm	0.12 in	Through Hole	0.05 in	1.27 mm	0.05 in	1.27 mm	Black	Solder	Shrouded - 4 Wall	8.25 mm	0.325 in	Male Pin		0.107 "	2.71 mm	0.35 in	8.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	23	$ 5.88

Description

General part information

EHF-108 Series

Connector Header Surface Mount 16 position 0.050" (1.27mm)

Documents

Technical documentation and resources

SHF,ESHF,EHF,ECF Datasheet

Datasheet
