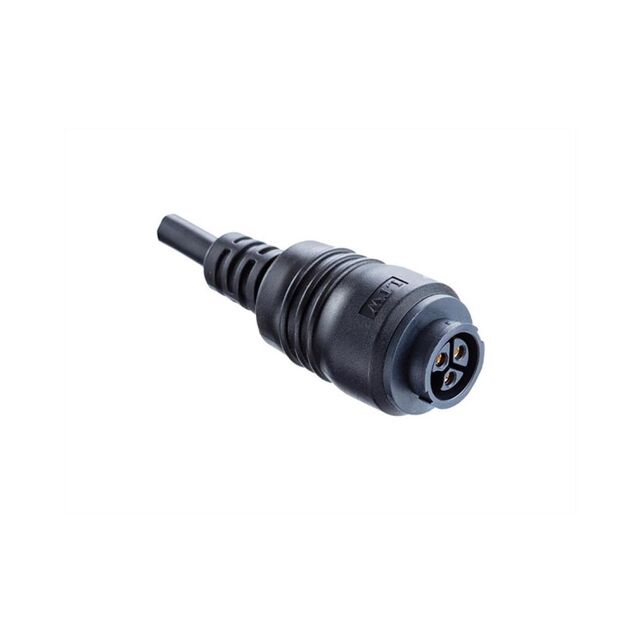

PWC-03AMFM-LL7A01

Active

Amphenol LTW

POWER, PWC, PLASTIC, 20A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, OVERMOLDED, LENGTH 1000MM, IP67 ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PWC-03AMFM-LL7A01

Active

Amphenol LTW

POWER, PWC, PLASTIC, 20A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, OVERMOLDED, LENGTH 1000MM, IP67 ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWC-03AMFM-LL7A01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

PWC-03AMFM Series

Part	1st Connector Gender	Color	1st Connector Number of Positions	1st Connector Mounting Type	Cable Type	Shielding	Assembly Configuration	1st Connector Orientation [custom]	Ingress Protection	Cable Material	1st Connector Number of Positions Loaded	1st Connector Type	Usage	2nd Connector Type	Length [x]	Length [x]
Amphenol LTW PWC-03AMFM-LL7B01	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads	1 m	3.28 ft
Amphenol LTW PWC-03AMFM-TL7B01	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads	1 m	3.28 ft
Amphenol LTW PWC-03AMFM-LL7A02	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads	2 m	6.56 ft
Amphenol LTW PWC-03AMFM-LL7E05	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads
Amphenol LTW PWC-03AMFM-LL7B02	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads	2 m	6.56 ft
Amphenol LTW PWC-03AMFM-TL7B10	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads
Amphenol LTW PWC-03AMFM-LL7A01	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads	1 m	3.28 ft
Amphenol LTW PWC-03AMFM-TL7A02	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads	2 m	6.56 ft
Amphenol LTW PWC-03AMFM-LL7A05	Female Sockets	Black	3	Free Hanging (In-Line)	Round	Unshielded	Standard	Keyed	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	All	Receptacle	Industrial Environments	Wire Leads	500 mm	1.64 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 14.59
Newark	Each	10	$ 15.46
		25	$ 14.19
		50	$ 12.67
		100	$ 11.66
		250	$ 11.32

Description

General part information

PWC-03AMFM Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
