SQT-121-01-F-D
ActiveSamtec Inc.

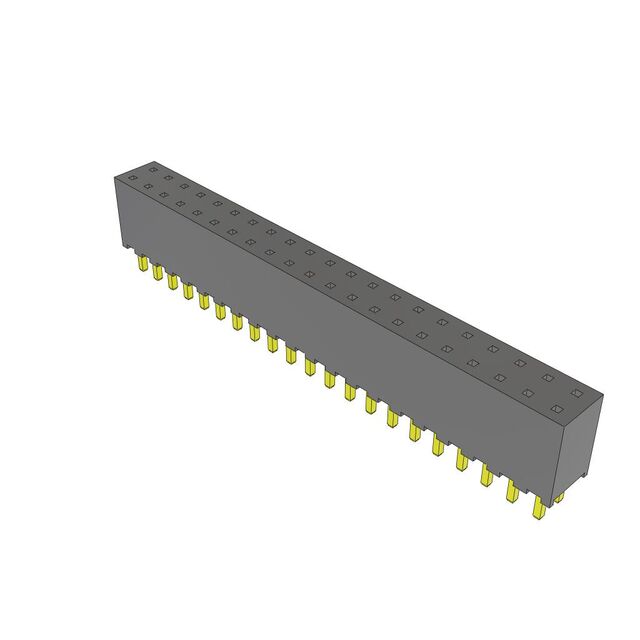

CONN RCPT 42POS 0.079 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
SQT-121-01-F-D
ActiveSamtec Inc.
CONN RCPT 42POS 0.079 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQT-121-01-F-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 5.1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
SQT-121 Series
| Part | Contact Finish - Post | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Type | Number of Positions Loaded | Current Rating (Amps) | Contact Material | Insulation Material | Contact Finish Thickness - Mating | Termination | Mounting Type | Contact Finish - Mating | Insulation Color | Material Flammability Rating | Number of Positions | Contact Length - Post | Contact Length - Post | Contact Shape | Style | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Number of Rows | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height [custom] | Insulation Height [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | 6.35 mm | 0.25 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | Solder | Through Hole | Gold | Black | UL94 V-0 | 42 | 5.28 mm | 0.208 in | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 2 | 0.079 in | 2 mm | ||||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | 6 mm | 0.236 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Through Hole Right Angle | Gold | Black | UL94 V-0 | 63 | 2.29 mm | 0.09 " | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 3 | 0.079 in | 2 mm | 10 çin | 0.25 çm | |||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | Solder | Through Hole Right Angle | Gold | Black | UL94 V-0 | 42 | 2.29 mm | 0.09 " | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 2 | 0.079 in | 2 mm | 0.157 in | 4 mm | ||||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | 6.35 mm | 0.25 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Through Hole | Gold | Black | UL94 V-0 | 21 | 15.24 mm | 0.6 in | Square | Board to Board Cable | Push-Pull | 1 | 0.079 in | 2 mm | 10 çin | 0.25 çm | |||||||
Samtec Inc. | Gold | Receptacle | -55 °C | 125 °C | 6.35 mm | 0.25 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Through Hole | Gold | Black | UL94 V-0 | 84 | 2.29 mm | 0.09 " | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 0.079 in | 2 mm | 20 µin | 0.51 µm | 3 µin | 0.076 µm | ||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | 6.35 mm | 0.25 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Through Hole | Gold | Black | UL94 V-0 | 42 | 2.29 mm | 0.09 " | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 2 | 0.079 in | 2 mm | 10 çin | 0.25 çm | |||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | Solder | Through Hole Right Angle | Gold | Black | UL94 V-0 | 42 | 2.29 mm | 0.09 " | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 2 | 0.079 in | 2 mm | 0.157 in | 4 mm | ||||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | 6.35 mm | 0.25 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | Solder | Through Hole | Gold | Black | UL94 V-0 | 42 | 2.29 mm | 0.09 " | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 2 | 0.079 in | 2 mm | ||||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | 6.35 mm | 0.25 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Through Hole | Gold | Black | UL94 V-0 | 21 | 2.29 mm | 0.09 " | Square | Board to Board Cable | Push-Pull | 1 | 0.079 in | 2 mm | 10 çin | 0.25 çm | |||||||
Samtec Inc. | Tin | Receptacle | -55 °C | 125 °C | 6.35 mm | 0.25 in | Forked | All | 5.1 A | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Solder | Through Hole | Gold | Black | UL94 V-0 | 84 | 2.29 mm | 0.09 " | Square | Board to Board Cable | 0.079 in | 2 mm | Push-Pull | 0.079 in | 2 mm | 10 çin | 0.25 çm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 13 | $ 6.16 | |
Description
General part information
SQT-121 Series
42 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
