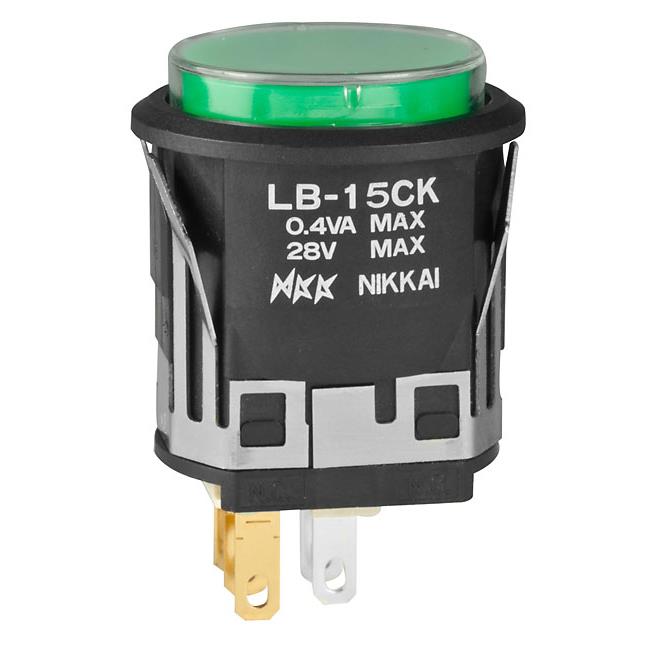

LB15CKG01-5F24-JF

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB15CKG01-5F24-JF

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15CKG01-5F24-JF

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

LB15CKG Series

Part	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Current Rating (Amps)	Actuator Marking	Electrical Life	Switch Function	Voltage Rating - DC	Type	Panel Cutout Dimensions [diameter]	Circuit	Color - Actuator/Cap	Mechanical Life	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB15CKG01-E	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Standard	22 mm	SPDT	Yellow	1000000 Cycles	Button Round	Panel Mount Snap-In	70 °C	-25 °C
NKK Switches LB15CKG01-5F-JB	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Clear	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	2.1 VDC	Green LED
NKK Switches LB15CKG01-5C24-JB	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Clear	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	24 V	LED Red
NKK Switches LB15CKG01-5D-JD	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Clear	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	2 VDC	Amber LED
NKK Switches LB15CKG01-5D12-JD	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Clear	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	12 VDC	Amber LED
NKK Switches LB15CKG01-CF-A	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Black	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	2 VDC 2.2 VDC	Green/Red LED
NKK Switches LB15CKG01	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Standard	22 mm	SPDT		1000000 Cycles	Plunger for Cap	Panel Mount Snap-In	70 °C	-25 °C
NKK Switches LB15CKG01-5F24-JF	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Clear	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	24 V	Green LED
NKK Switches LB15CKG01-6G-JB	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Clear	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	3.6 VDC	Blue LED
NKK Switches LB15CKG01-5C-JB	28 V	0.11 in	Quick Connect Solder	2.8 mm	0.4 VA	No Marking	100000 Cycles	On-Mom	28 V	Illuminated Standard	22 mm	SPDT	Clear	1000000 Cycles	Button Round	Panel Mount Snap-In	50 °C	-25 °C	1.9 VDC	LED Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.43
		10	$ 24.00
		25	$ 22.92
		50	$ 21.71
		100	$ 20.90
		250	$ 19.55
		500	$ 16.69
Newark	Each	1	$ 47.20
		5	$ 42.09
		10	$ 40.66
		25	$ 38.41
		50	$ 35.76
		100	$ 31.67
		250	$ 28.40

Description

General part information

LB15CKG Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
