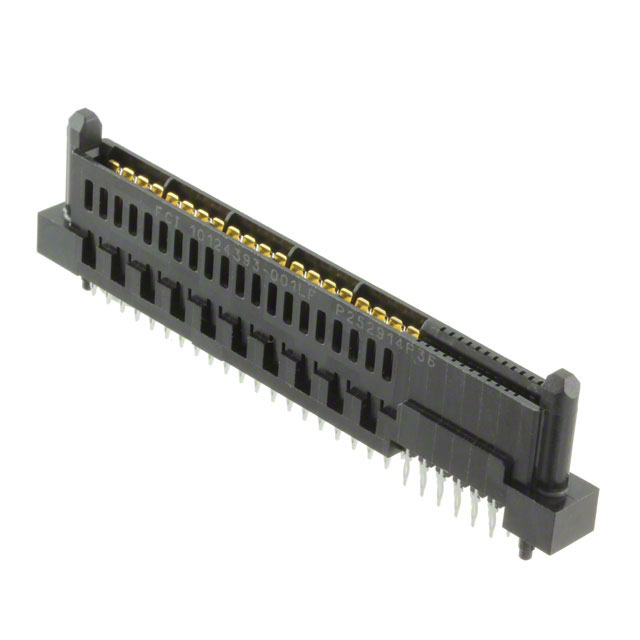

10124393-001LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 64POS
Deep-Dive with AI
Search across all available documentation for this part.
10124393-001LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 64POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10124393-001LF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Material | Copper Alloy |
| Features | Guide Pin, Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 24 |
| Number of Positions [custom] | 40 |
| Number of Rows | 2 |
| Read Out | Dual |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.69 | |
| 10 | $ 13.35 | |||
| 25 | $ 12.21 | |||
| 40 | $ 11.71 | |||
| 80 | $ 10.88 | |||
| 230 | $ 9.78 | |||
| 440 | $ 9.18 | |||
Description
General part information
10124393 Series
64 (24 + 40 Power) Position Female Connector Non Specified - Dual Edge Black
