DLCBS5-3-01

Active

Essentra Access Solutions

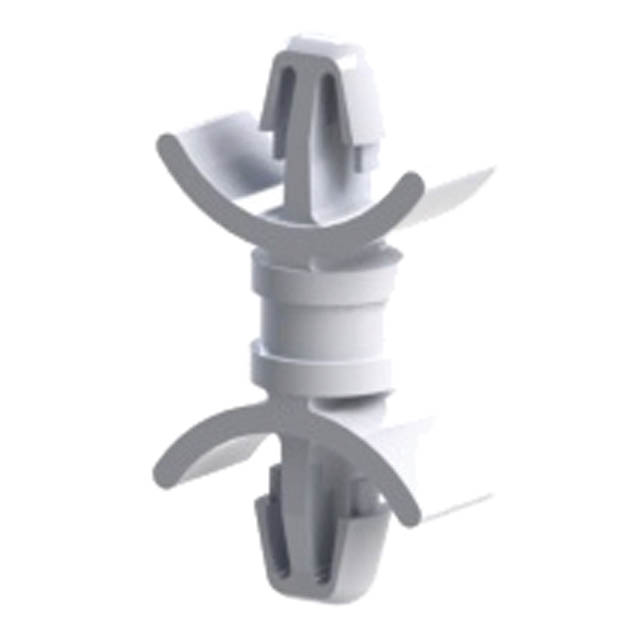

BRD SPT SNAP LOCK NYLON 4.80MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DLCBS5-3-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 4.80MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DLCBS5-3-01

Between Board Height	0.189 in
Between Board Height	4.8 mm
Features	Winged
Holding Type	Snap Lock
Length - Overall [x]	0.626 in
Length - Overall [x]	15.9 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.5 mm
Mounting Hole Diameter [diameter]	0.138 in
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	3.5 mm
Support Hole Diameter [diameter]	0.138 in
Support Panel Thickness [Max]	1.98 mm
Support Panel Thickness [Max]	0.078 "
Support Panel Thickness [Min]	0.79 mm
Support Panel Thickness [Min]	0.031 in

DLCBS5 Series

Part	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Features	Material	Holding Type	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Length - Overall	Length - Overall	Length - Overall
Essentra Access Solutions DLCBS5-4-01	1.98 mm	0.79 mm	0.031 in	0.078 "	6.35 mm	0.25 in	0.25 in	Snap Lock	3.5 mm	0.138 in	0.689 in	17.5 mm	3.5 mm	0.138 in	Winged	Nylon	Snap Lock	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions DLCBS5-10-01	1.98 mm	0.79 mm	0.031 in	0.078 "	15.9 mm	0.626 in		Snap Lock	3.5 mm	0.138 in			3.5 mm	0.138 in	Winged	Nylon	Snap Lock	0.79 mm	1.98 mm	0.031 in	0.078 "	27 mm		1.063 "
Essentra Access Solutions DLCBS5-3-01	1.98 mm	0.79 mm	0.031 in	0.078 "	4.8 mm	0.189 in		Snap Lock	3.5 mm	0.138 in	0.626 in	15.9 mm	3.5 mm	0.138 in	Winged	Nylon	Snap Lock	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions DLCBS5-8-01	1.98 mm	0.79 mm	0.031 in	0.078 "	12.7 mm	0.5 in	0.5 in	Snap Lock	3.5 mm	0.138 in			3.5 mm	0.138 in	Winged	Nylon	Snap Lock	0.79 mm	1.98 mm	0.031 in	0.078 "	15 in	23.83 mm	0.938 in
Essentra Access Solutions DLCBS5-9-01	1.98 mm	0.79 mm	0.031 in	0.078 "	14.3 mm	0.563 in	0.5625 in	Snap Lock	3.5 mm	0.138 in			3.5 mm	0.138 in	Winged	Nylon	Snap Lock	0.79 mm	1.98 mm	0.031 in	0.078 "	25.4 mm		1 "
Essentra Access Solutions DLCBS5-7-01	1.98 mm	0.79 mm	0.031 in	0.078 "	0.4375 in	0.438 in	11.13 mm	Snap Lock	3.5 mm	0.138 in	0.874 in	22.2 mm	3.5 mm	0.138 in	Winged	Nylon	Snap Lock	0.79 mm	1.98 mm	0.031 in	0.078 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.46
		10	$ 0.39
		25	$ 0.34
		50	$ 0.31
		100	$ 0.30
		250	$ 0.27
		500	$ 0.26
		1000	$ 0.22
		3000	$ 0.20

Description

General part information

DLCBS5 Series

Board Support Snap Lock / Snap Lock Nylon 0.189" (4.80mm)
