25012 BK199

Active

ALPHA WIRE

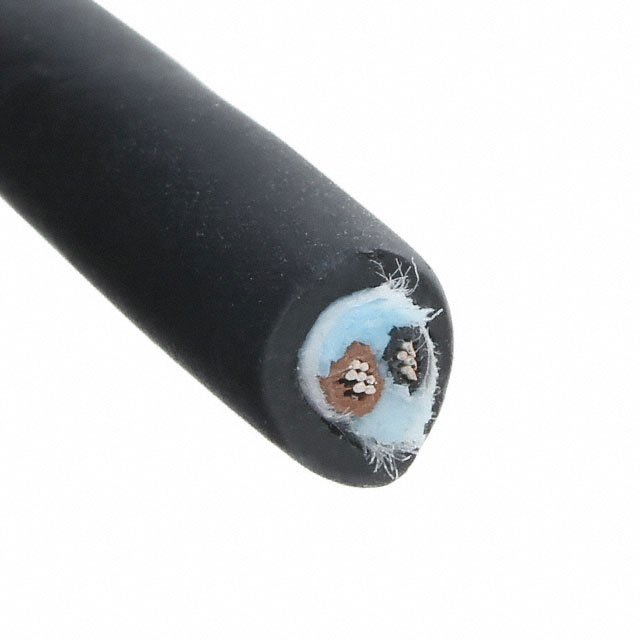

CABLE 2COND 24AWG BLACK FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 24AWG BLACK FEET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 24 AWG Enter Number of Feet in Order Quantity

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25012 BK199	25012 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.156 in	0.156 in
Jacket (Insulation) Diameter [diameter]	3.96 mm	3.96 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 2COND 24AWG BLACK FEET

Part	Spool Size	Spool Size	Conductor Material	Wire Gauge	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Ratings	Features	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Number of Conductors	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 25012 BK199	1000 ft	304.8 m	Copper, Tinned	24 AWG	300 V	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Enter Number of Feet in Order Quantity	0.156 in	3.96 mm	Black	ISO 10993, UL Style 20668	Biological Compatibility, Rip Cord	32 AWG	7	Multi-Conductor	2	Polyurethane (PU)
ALPHA WIRE 25012 BK005			Copper, Tinned	24 AWG	300 V	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)		0.156 in	3.96 mm	Black	ISO 10993, UL Style 20668	Biological Compatibility, Rip Cord	32 AWG	7	Multi-Conductor	2	Polyurethane (PU)	30.5 m	100 ft
