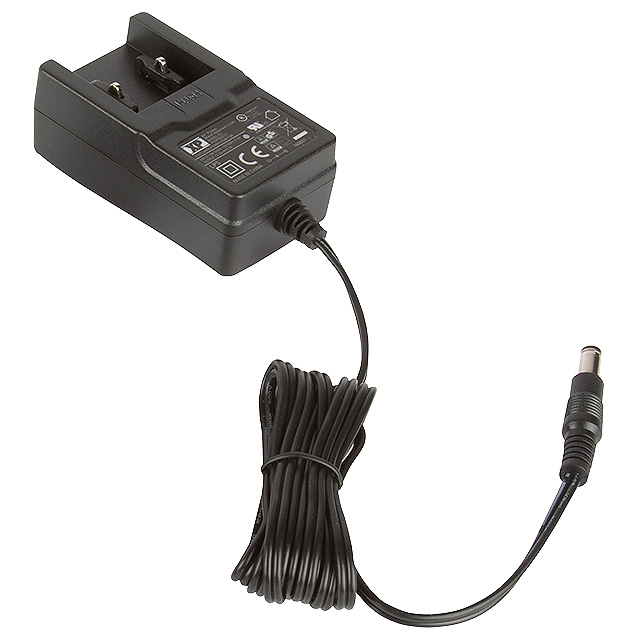

ACM06US05

Active

XP Power

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

XP Power

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	ACM06US05

Applications	ITE (Commercial), Medical
Approval Agency	CE, CB
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Power (Watts)	5 W
Region Utilized	International
Size / Dimension [x]	73.5 mm
Size / Dimension [x]	2.89 in
Size / Dimension [y]	42.5 mm
Size / Dimension [y]	1.67 "
Size / Dimension [z]	1.21 "
Size / Dimension [z]	30.7 mm
Standard Number	60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.176 lb
Weight	79.83 g

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Weight	Weight	Form	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Region Utilized	Power (Watts)	Input Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Output Connector	Output Connector [diameter]	Output Connector [x]	Efficiency	Approval Agency	Applications	Standard Number	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
XP Power ACM06US05	0.176 lb	79.83 g	Wall Mount (Class II)	5 V	90 VAC	264 VAC	70.9 in	1.8 m	International	5 W	Multi-Blade	1.21 "	73.5 mm	42.5 mm	2.89 in	1.67 "	30.7 mm	Multi-Blade (Sold Separately)	Barrel Plug	2.5 mm, 5.5 mm	11 mm	CoC Tier 2, Level VI	CB, CE	ITE (Commercial), Medical	60601-1, 62368-1	75 mW	1 A	60 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
