SSHB10H-04320

Active

KEMET

CMC 23MH 400MA 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_LF0036_SSHB10H.pdf

SSHB10H-04320

Active

KEMET

CMC 23MH 400MA 2LN TH

Deep-Dive with AI

DocumentsDatasheet KEM_LF0036_SSHB10H.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSHB10H-04320

Current Rating (Max) [Max]	400 mA
DC Resistance (DCR) (Max) [Max]	2.7 Ohm
Height (Max)	15.5 mm
Height (Max) [Max]	0.61 in
Inductance @ Frequency	23 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.866 in
Size / Dimension [y]	17 mm
Size / Dimension [y]	0.669 in
Voltage Rating - AC	250 V

SSHB10H Series

Part	Height (Max)	Height (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage Rating - AC	Inductance @ Frequency	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)
KEMET SSHB10H-04320	15.5 mm	0.61 in	2.7 Ohm	4 Lead	Vertical	-25 °C	130 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	23 mH	2	400 mA
KEMET SSHB10H-08082	15.5 mm	0.61 in	640 mOhm	4 Lead	Vertical	-25 °C	130 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	8.2 mH	2	800 mA
KEMET SSHB10HS-R30015	15.5 mm	0.61 in	60 mOhm	4 Lead	Vertical	-25 °C	120 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	1.5 mH	2	3 A
KEMET SSHB10HS-22011	15.5 mm	0.61 in	110 mOhm	4 Lead	Vertical	-25 °C	130 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	1.1 mH	2	2.2 A
KEMET SSHB10HS-05177	15.5 mm	0.61 in		4 Lead	Vertical	-25 °C	130 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	17.7 mH	2	500 mA	1.55 Ohm
KEMET SSHB10H-R13088	15.5 mm	0.61 in	280 mOhm	4 Lead	Vertical	-25 °C	120 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	8.8 mH	2	1.3 A
KEMET SSHB10H-R10151	15.5 mm	0.61 in	480 mOhm	4 Lead	Vertical	-25 °C	120 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	10 kHz 15.1 mH	2	1 A
KEMET SSHB10H-R08194	15.5 mm	0.61 in	640 mOhm	4 Lead	Vertical	-25 °C	120 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	19.4 mH	2	800 mA
KEMET SSHB10H-R30017	15.5 mm	0.61 in	70 mOhm	4 Lead	Vertical	-25 °C	120 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	1.7 mH 10 kHz	2	3 A
KEMET SSHB10H-R04760	15.5 mm	0.61 in	2.7 Ohm	4 Lead	Vertical	-25 °C	120 °C	22 mm	17 mm	0.866 in	0.669 in	Through Hole	250 V	10 kHz 76 mH	2	400 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.73
		10	$ 1.57
		25	$ 1.51
		60	$ 1.45
		120	$ 1.40
		300	$ 1.35
		540	$ 1.31
		1020	$ 1.28
		5040	$ 1.19

Description

General part information

SSHB10H Series

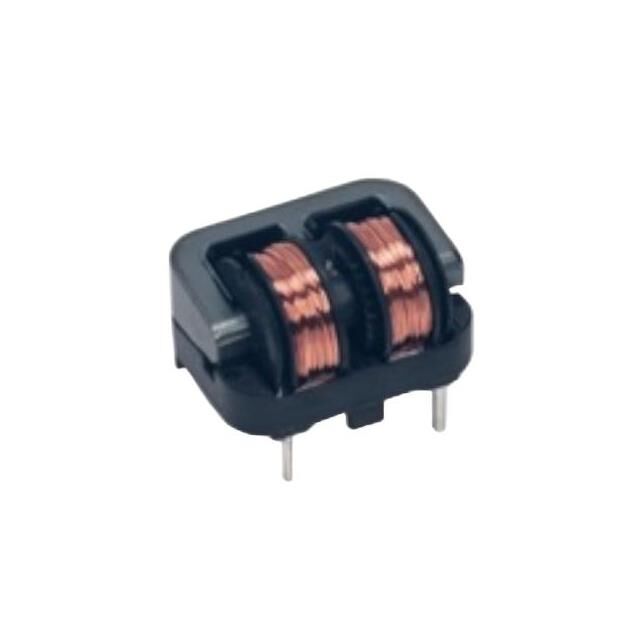

23 mH 2 Line Common Mode Choke Through Hole 400mA DCR 2.7Ohm

Documents

Technical documentation and resources

Datasheet

KEM_LF0036_SSHB10H.pdf

Datasheet
