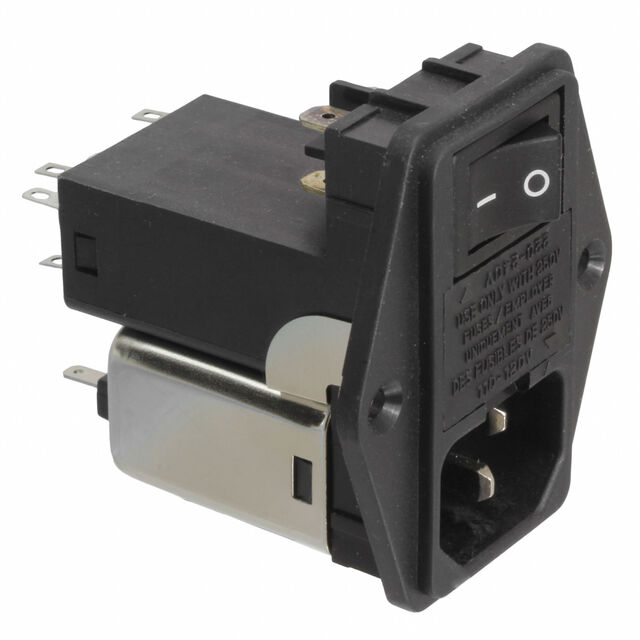

04SB3

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04SB3	04SB Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	4 A	4 A
Current Rating - Filter	-	4 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm	28.5 mm
Panel Cutout Dimensions [y]	55.9 mm	55.9 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	Solder Eyelet	Solder Eyelet
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Fuse Holder, Drawer	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accomodates a Fuse	Mounting Type	Connector Style	Connector Type	Current Rating - Appliance Inlet	Filter Type	Switch Features	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Filter
Delta Electronics 04SB3	CSA, UL, VDE	Fuse Holder, Twin Fused	Solder Eyelet	55.9 mm	28.5 mm		Flange, Panel Mount	IEC 320-C14	Receptacle, Male Blades - Module	4 A	Filtered (EMI, RFI) - Commercial	Switch On-Off	115 VAC	250 VAC
Delta Electronics 04SB4	CSA, UL, VDE	Fuse Holder, Twin Fused	Solder Eyelet	55.9 mm	28.5 mm		Flange, Panel Mount	IEC 320-C14	Receptacle, Male Blades - Module	4 A	Filtered (EMI, RFI) - Commercial		115 VAC	250 VAC	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
