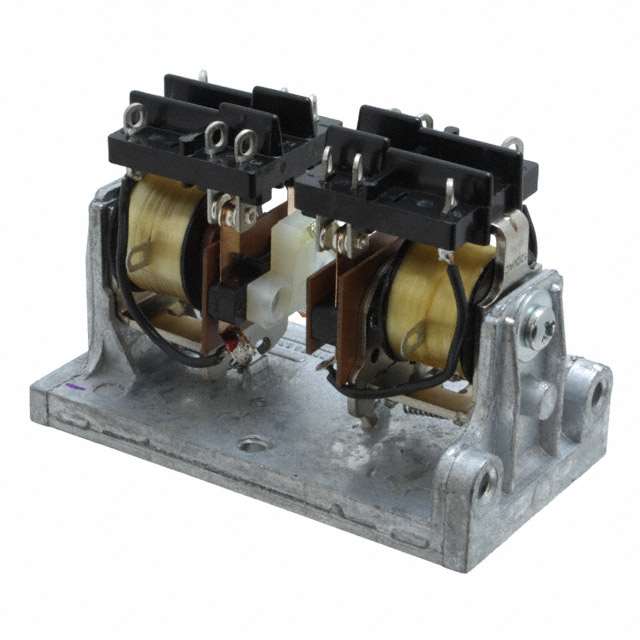

KB-17AG-120
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KB-17AG-120 |
|---|---|
| Coil Current | 44 mA |
| Coil Resistance | 1030 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 120 VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 102 VAC |
| Relay Type | General Purpose |
| Switching Voltage | 120 VAC |
| Termination Style | Solder Lug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KB-17AG Series
General Purpose Relay 4PDT (4 Form C) 120VAC Coil Chassis Mount
