5-964702-3
ActiveTE Connectivity AMP Connectors

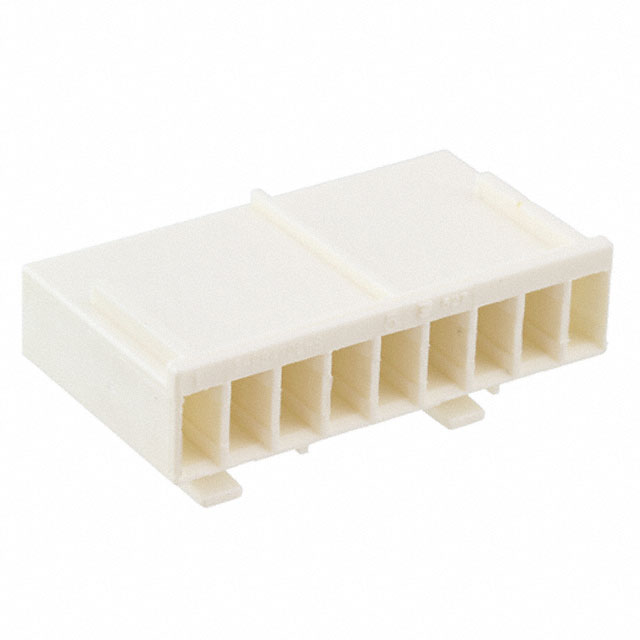

CONN RCPT HSG 9POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-964702-3
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 9POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-964702-3 | 964702 Series |
|---|---|---|
| Color | Natural | Natural, Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 9 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 23000 | $ 0.78 | |
964702 Series
CONN RCPT HSG 9POS 5.00MM
| Part | Pitch [x] | Pitch [x] | Color | Mounting Type | Contact Type | Number of Rows | Note | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Insulation Material | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-964702-3 | 5 mm | 0.197 in | Natural | Free Hanging (In-Line) | Female Socket | 1 | Contacts Not Included | Crimp | -40 °C | 110 °C | Latch Lock | Nylon, Polyamide (PA) | 9 | Receptacle |
TE Connectivity AMP Connectors 964702-2 | 5 mm | 0.197 in | Black | Free Hanging (In-Line) | Female Socket | 1 | Contacts Not Included | Crimp | -40 °C | 110 °C | Latch Lock | 9 | Receptacle |
Description
General part information
964702 Series
9 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
