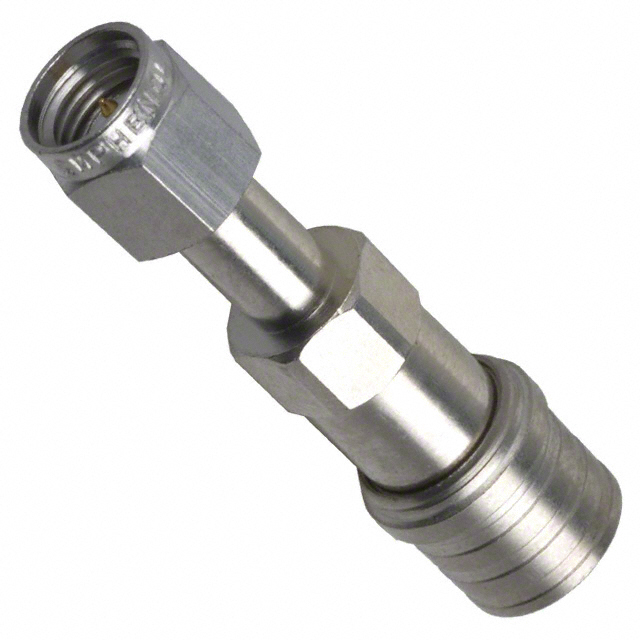

930-130A-51S

Active

Amphenol RF

CONN ADAPT QMA PLUG TO SMA PLUG

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT QMA PLUG TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	930-130A-51S

Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	QMA Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Finish	Adapter Type	Style	Mounting Type	Center Gender	Fastening Type	Center Contact Material	Convert From (Adapter End)	Impedance	Dielectric Material	Mating Cycles	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Conversion Type	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Contact Termination	Housing Color	Mounting Feature	Connector Type	Number of Ports
Amphenol RF 930-130A-51S	White Bronze	Plug to Plug	Straight	Free Hanging (In-Line)	Male to Male	Snap-On Threaded	Brass	QMA Plug Male Pin	50 Ohms	Polytetrafluoroethylene (PTFE)	500	Brass	-65 ░C	165 °C	Male Pin SMA Plug	Between Series	6000 MHz	Gold
Amphenol RF 930-132J-51S	Gold					Snap-On	Beryllium Copper		50 Ohms	Polytetrafluoroethylene (PTFE)	500	Brass	-65 ░C	165 °C			6000 MHz	Gold	Solder	Solder	Gold	Flange	Female Socket Jack	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector QMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
