5001UE 0081000

Active

Belden Inc.

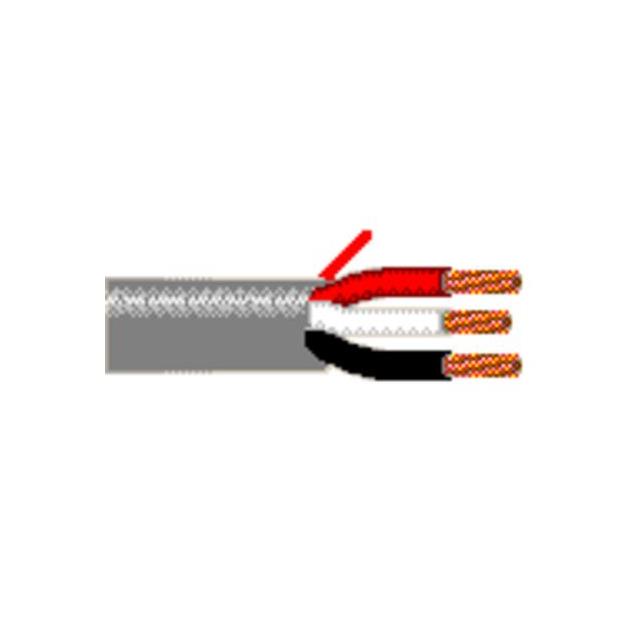

CABLE 3COND 12AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 12AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5001UE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	25
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.277 in
Jacket (Insulation) Diameter [diameter]	7.04 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Ratings	UL Style CL3R
Usage	Sound, Security
Voltage	300 V
Wire Gauge	12 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Ratings	Voltage	Number of Conductors	Jacket (Insulation) Material	Jacket Color
Belden Inc. 5001UE 0081000	0.277 in	7.04 mm	Polypropylene (PP)	Rip Cord	1000 ft	304.8 m	19	25	Security Sound	12 AWG	0.432 mm	0.017 in	Multi-Conductor	Copper Bare	UL Style CL3R	300 V	3	Poly-Vinyl Chloride (PVC) Riser	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.65

General part information

3 Conductor Multi-Conductor Cable Gray 12 AWG 1000.0' (304.8m)
