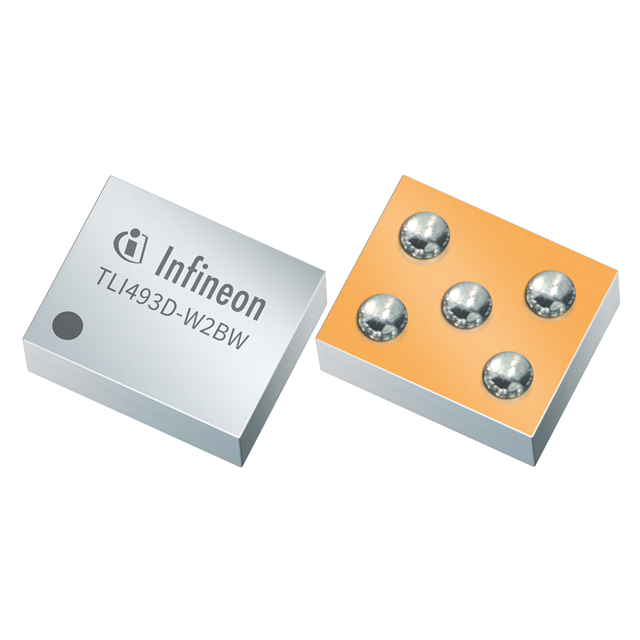

TLI493DW2BWA3XTMA1

Active

Infineon Technologies

HALL EFFECT SENSOR, WFWLB, 5 PINS, 2.8 V, 3.5 V, -40 °C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

TLI493DW2BWA3XTMA1

Active

Infineon Technologies

HALL EFFECT SENSOR, WFWLB, 5 PINS, 2.8 V, 3.5 V, -40 °C

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLI493DW2BWA3XTMA1

Current - Supply (Max) [Max]	5 mA
Features	Temperature Compensated
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Type	Open Drain
Package / Case	WLCSP, 5-UFBGA
Sensing Range	160 mT
Supplier Device Package	5-WLCSP
Supplier Device Package [x]	1.13
Supplier Device Package [y]	0.93
Technology	Hall Effect

TLI493 Series

Part	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case	Current - Supply (Max) [Max]	Sensing Range	Output Type	Technology
Infineon Technologies TLI493DW2BWA3XTMA1	Surface Mount	Temperature Compensated	-40 °C	125 ¯C	5-WLCSP	0.93	1.13	5-UFBGA WLCSP	5 mA	160 mT	Open Drain	Hall Effect
Infineon Technologies TLI493DW2BWA0XTSA1	Surface Mount	Temperature Compensated	-40 °C	125 ¯C	5-WLCSP	0.93	1.13	5-UFBGA WLCSP	5 mA	160 mT	Open Drain	Hall Effect

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.43
		10	$ 1.10
		25	$ 0.92
		50	$ 0.90
		100	$ 0.82
		500	$ 0.72
	Digi-Reel®	1	$ 1.43
		10	$ 1.10
		25	$ 0.92
		50	$ 0.90
		100	$ 0.82
		500	$ 0.72
	Tape & Reel (TR)	15000	$ 0.72
Newark	Each (Supplied on Cut Tape)	1	$ 1.31
		10	$ 1.10
		25	$ 1.03
		50	$ 0.99
		100	$ 0.94
		250	$ 0.90
		500	$ 0.86
		1000	$ 0.83

Description

General part information

TLI493 Series

TLI493DW2BWA3XTMA1 is a low-power 3D hall sensor with an I²C interface and Wake-Up function. The potential application includes multi-function knobs, joysticks, and gimbals, white good applications (washing, dryer machines), robotics position sensing, mobile camera lens position sensing for focus and zoom, and angle measurement in end of shaft and out of shaft configurations.
