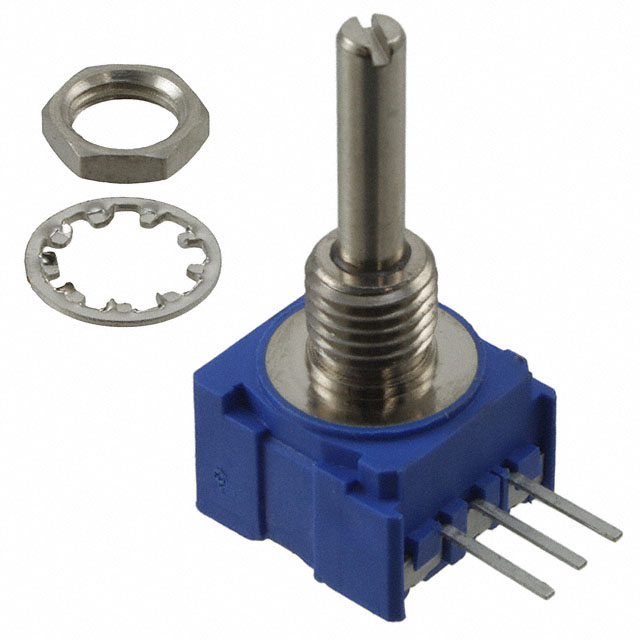

51CAD-E24-B13L

Active

Bourns Inc.

PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN /TRAY PACKAGING ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

51CAD-E24-B13L

Active

Bourns Inc.

PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN /TRAY PACKAGING ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51CAD-E24-B13L

Actuator Diameter [diameter]	0.125 in
Actuator Diameter [diameter]	3.18 mm
Actuator Length [z]	19.05 mm
Actuator Length [z]	0.75 in
Actuator Type	Slotted
Adjustment Type	Side Adjustment
Built in Switch	False
Bushing Thread	1/4-32
Features	Sealed
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance (Ohms)	5 kOhms
Resistive Material	Conductive Plastic
Rotation	290 °
Size - Body [x]	0.521 in
Size - Body [x]	13.25 mm
Size - Body [y]	12.5 mm
Size - Body [y]	0.492 in
Taper	Linear
Temperature Coefficient	1000 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

51CAD Series

Part	Rotation	Size - Body [x]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Bushing Thread	Adjustment Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Taper	Actuator Length [z]	Actuator Length [z]	Power (Watts)	Number of Gangs	Actuator Type	Tolerance	Resistive Material	Number of Turns	Termination Style	Features	Temperature Coefficient	Resistance (Ohms)	Power (Watts)	Resistance (Ohms)	Actuator Length [x]	Actuator Length
Bourns Inc. 51CAD-E28-A20L	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Linear	22.23 mm	0.875 in	1 W	1	Slotted	10 %	Cermet	1	PC Pins	Sealed	150 ppm/°C	100 kOhms
Bourns Inc. 51CAD-E24-A10L	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Linear	19.05 mm	0.75 in	1 W	1	Slotted	10 %	Cermet	1	PC Pins	Sealed	150 ppm/°C	1 kOhms
Bourns Inc. 51CAD-E28-A10	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Linear	22.23 mm	0.875 in	1 W	1	Slotted	10 %	Cermet	1	PC Pins	Sealed	150 ppm/°C	1 kOhms
Bourns Inc. 51CAD-E24-B15	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Linear	19.05 mm	0.75 in	0.5 W	1	Slotted	20 %	Conductive Plastic	1	PC Pins	Sealed	1000 ppm/°C		0.5 W	10k
Bourns Inc. 51CAD-E24-A15	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Linear	19.05 mm	0.75 in	1 W	1	Slotted	10 %	Cermet	1	PC Pins	Sealed	150 ppm/°C			10k
Bourns Inc. 51CAD-E28-D15L	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Logarithmic	22.23 mm	0.875 in	250 mW	1	Slotted	20 %	Conductive Plastic	1	PC Pins	Sealed	1000 ppm/°C		0.25 W	10k
Bourns Inc. 51CAD-E16-D20L	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Logarithmic			250 mW	1	Slotted	20 %	Conductive Plastic	1	PC Pins	Sealed	1000 ppm/°C	100 kOhms	0.25 W		0.5 in	12.7 mm
Bourns Inc. 51CAD-E28-A20	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Linear	22.23 mm	0.875 in	1 W	1	Slotted	10 %	Cermet	1	PC Pins	Sealed	150 ppm/°C	100 kOhms
Bourns Inc. 51CAD-E24-B13L	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Linear	19.05 mm	0.75 in	0.5 W	1	Slotted	20 %	Conductive Plastic	1	PC Pins	Sealed	1000 ppm/°C	5 kOhms	0.5 W
Bourns Inc. 51CAD-E28-D15	290 °	0.521 in	13.25 mm	12.5 mm	0.492 in	1/4-32	Side Adjustment	0.125 in	3.18 mm	Logarithmic	22.23 mm	0.875 in	250 mW	1	Slotted	20 %	Conductive Plastic	1	PC Pins	Sealed	1000 ppm/°C		0.25 W	10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.00
		45	$ 8.65
		135	$ 7.86
		1035	$ 5.70
Newark	Each	250	$ 5.49
		500	$ 5.10

Description

General part information

51CAD Series

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W PC Pins
