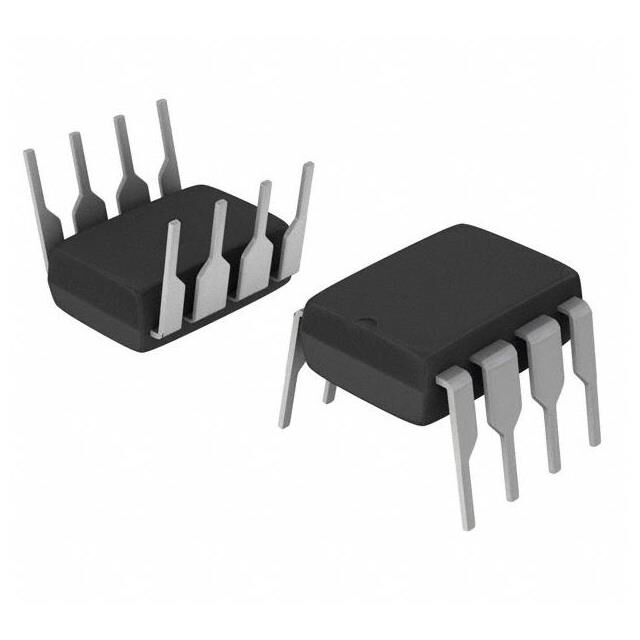

IRS2540PBF

Obsolete

Infineon Technologies

LED DRIVER 2 SEGMENT 10000UA SUPPLY CURRENT 8-PIN PDIP TUBE

Search across all available documentation for this part.

Obsolete

Infineon Technologies

LED DRIVER 2 SEGMENT 10000UA SUPPLY CURRENT 8-PIN PDIP TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Dimming	Voltage - Supply (Min) [Min]	Frequency	Type	Voltage - Supply (Max) [Max]	Number of Outputs	Topology	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Package / Case
Infineon Technologies IRS2540C
Infineon Technologies IRS2540SPBF	PWM	9 V	500 kHz	DC DC Controller	15.6 V	1	Step-Down (Buck)	8-SOIC	8-SOIC	3.9 mm	0.154 in	-25 °C	150 °C	Surface Mount
Infineon Technologies IRS2540STRPBF	PWM	9 V	500 kHz	DC DC Controller	15.6 V	1	Step-Down (Buck)	8-SOIC	8-SOIC	3.9 mm	0.154 in	-25 °C	150 °C	Surface Mount
Infineon Technologies IRS2540PBF	PWM	9 V	500 kHz	DC DC Controller	15.6 V	1	Step-Down (Buck)	8-PDIP	8-DIP			-25 °C	150 °C	Through Hole	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 1 Output DC DC Controller Step-Down (Buck) PWM Dimming 8-PDIP
