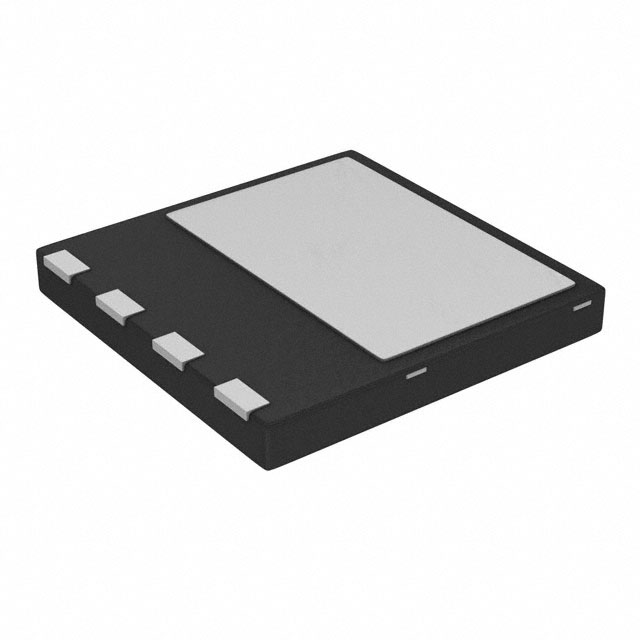

IPL65R230C7AUMA1

Active

Infineon Technologies

COOLMOS™ C7 N-CHANNEL SUPERJUNCTION MOSFET 650 V ; THINPAK 8X8 PACKAGE; 230 MOHM; HIGHEST PERFORMANCE

Deep-Dive with AI

Search across all available documentation for this part.

IPL65R230C7AUMA1

Active

Infineon Technologies

COOLMOS™ C7 N-CHANNEL SUPERJUNCTION MOSFET 650 V ; THINPAK 8X8 PACKAGE; 230 MOHM; HIGHEST PERFORMANCE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL65R230C7AUMA1

Current - Continuous Drain (Id) @ 25°C	10 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [x]	20 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	996 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-PowerTSFN
Power Dissipation (Max) [Max]	67 W
Rds On (Max) @ Id, Vgs	230 mOhm
Supplier Device Package	PG-VSON-4
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

IPL65R230 Series

Part	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs [x]	Vgs (Max)	FET Type	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Supplier Device Package	Drain to Source Voltage (Vdss)	Package / Case	Mounting Type
Infineon Technologies IPL65R230C7AUMA1	MOSFET (Metal Oxide)	150 °C	-40 °C	20 nC	20 V	N-Channel	10 A	10 V	996 pF	67 W	230 mOhm	4 V	PG-VSON-4	650 V	4-PowerTSFN	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.02
		10	$ 1.96
		100	$ 1.35
		500	$ 1.13
		1000	$ 1.10
	Digi-Reel®	1	$ 3.02
		10	$ 1.96
		100	$ 1.35
		500	$ 1.13
		1000	$ 1.10
	Tape & Reel (TR)	3000	$ 0.92
Newark	Each (Supplied on Cut Tape)	1	$ 3.21
		10	$ 2.09
		25	$ 1.87
		50	$ 1.66
		100	$ 1.45
		250	$ 1.31
		500	$ 1.18
		1000	$ 1.08

Description

General part information

IPL65R230 Series

Infineon’sCoolMOS™ C7 superjunction MOSFETseries is a revolutionary step forward in technology, providing the worlds’s lowest RDS(on)/package and, thanks to its low switching losses, efficiency improvements over the full load range.

Documents

Technical documentation and resources

No documents available
