Q-200710005036i

Active

Amphenol Custom Cable

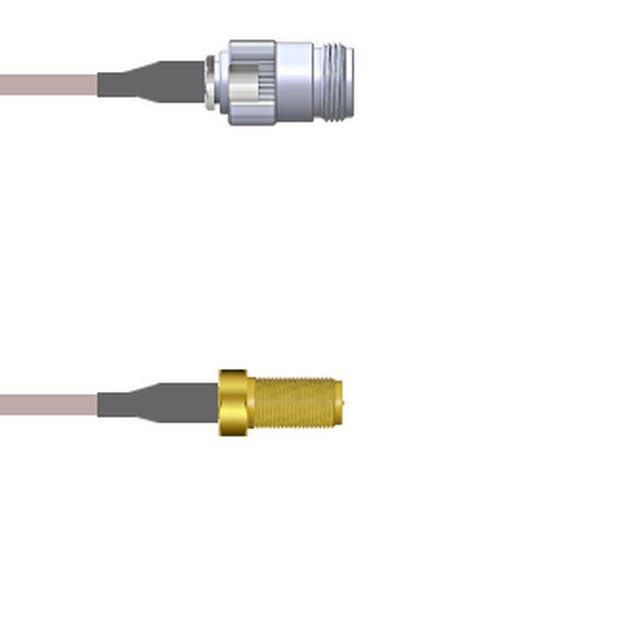

CBL ASSY RPSMA-NTYPE JCK-JCK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-200710005036i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JCK-JCK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-200710005036i

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-200710 Series

Part	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector	Overall Impedance	2nd Connector Mounting Type	Color	Cable Type	Style	Features	2nd Connector	Length	Length	Length	1st Contact Gender	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-200710003001M	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Black	RG-174	RP-SMA to N-Type	Shielded	N-Type Jack	1 m	3.3 ft	39.4 in	Male	Female
Amphenol Custom Cable Q-2007100050.5M	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Copper	RG-316	RP-SMA to N-Type	Shielded	N-Type Jack	50 cm		19.69 "	Male	Female
Amphenol Custom Cable Q-200710003006i	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Black	RG-174	RP-SMA to N-Type	Shielded	N-Type Jack	152.4 mm		6 in	Male	Female
Amphenol Custom Cable Q-200710003024i	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Black	RG-174	RP-SMA to N-Type	Shielded	N-Type Jack	609.6 mm		24 "	Male	Female
Amphenol Custom Cable Q-200710003036i	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Black	RG-174	RP-SMA to N-Type	Shielded	N-Type Jack	91.44 cm		36 in	Male	Female
Amphenol Custom Cable Q-200710005060i	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Copper	RG-316	RP-SMA to N-Type	Shielded	N-Type Jack	1.5 m	5 ft	5 '	Male	Female
Amphenol Custom Cable Q-200710003.25M	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Black	RG-174	RP-SMA to N-Type	Shielded	N-Type Jack				Male	Female	9.843 "	250 mm
Amphenol Custom Cable Q-200710005003M	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Copper	RG-316	RP-SMA to N-Type	Shielded	N-Type Jack	3 m	9.8 '	118.1 in	Male	Female
Amphenol Custom Cable Q-200710005084i	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Copper	RG-316	RP-SMA to N-Type	Shielded	N-Type Jack	2.1 m	7 ft	84 in	Male	Female
Amphenol Custom Cable Q-200710005036i	11 GHz	Free Hanging (In-Line)	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Copper	RG-316	RP-SMA to N-Type	Shielded	N-Type Jack	91.44 cm		36 in	Male	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.69
		25	$ 65.39
		50	$ 64.09
		100	$ 62.79
		250	$ 61.50

Description

General part information

Q-200710 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
