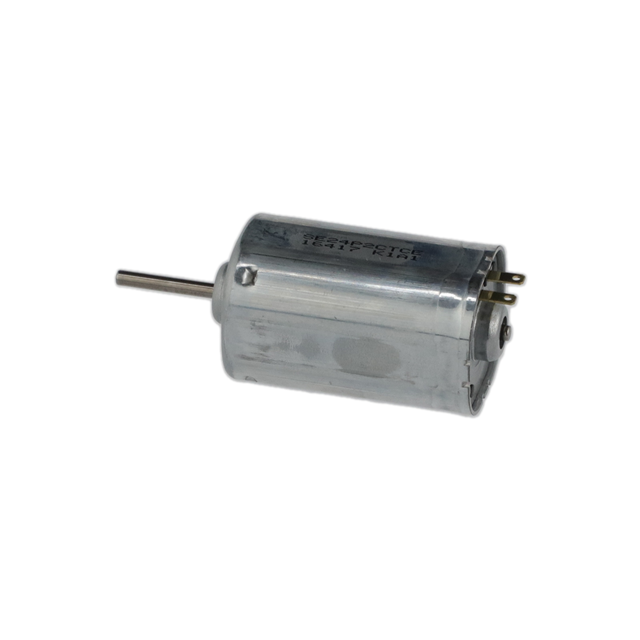

SE24P2CTCE
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 7770 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
SE24P2CTCE
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 7770 RPM 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE24P2CTCE |
|---|---|
| Diameter - Shaft [diameter] | 2.5 mm |
| Diameter - Shaft [diameter] | 0.098 in |
| Function | Standard |
| Length - Shaft and Bearing | 0.984 in |
| Length - Shaft and Bearing | 25 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 0.63 in |
| Mounting Hole Spacing | 16 mm |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [y] | 0.945 in |
| Size / Dimension [y] | 24 mm |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 2.83 oz-in |
| Torque - Rated (oz-in / mNm) | 20 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.63 | |
| 5 | $ 11.96 | |||
| 10 | $ 11.63 | |||
| 25 | $ 11.30 | |||
| 50 | $ 10.30 | |||
| 175 | $ 9.30 | |||
| 350 | $ 8.97 | |||
| 525 | $ 8.84 | |||
| 1050 | $ 8.31 | |||
Description
General part information
SE24P2CT Series
Brushed DC Motor Standard 7770 RPM 24VDC
