132119RP

Active

Amphenol RF

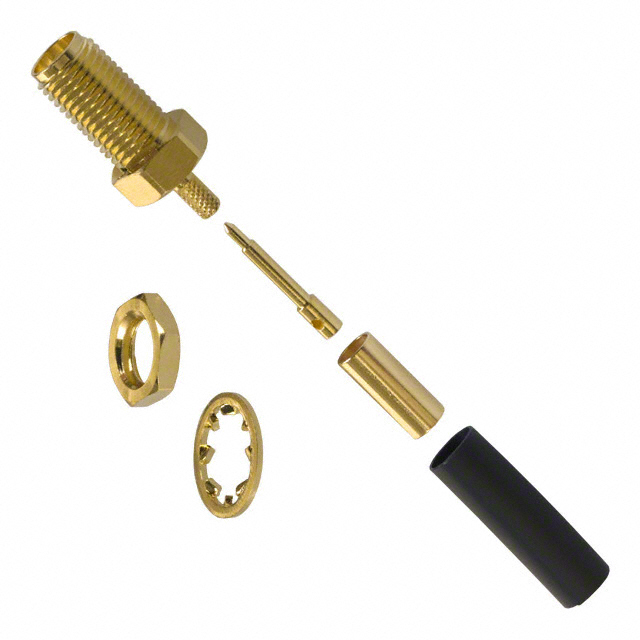

CONN RPSMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132119RP

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Heat Shrink, 1 Ferrule, 1 Contact, 1 Connector, 1 Lockwasher
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Body Finish	Voltage Rating	Center Contact Plating	Connector Style	Dielectric Material	Body Material	Frequency - Max [Max]	Impedance	Ingress Protection	Cable Group	Connector Type	Number of Ports	Center Contact Material	Includes	Contact Termination	Mounting Feature	Mating Cycles	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination
Amphenol RF 132119RP	Gold	375 V	Gold	RP-SMA	Polytetrafluoroethylene (PTFE)	Brass	12.4 GHz	50 Ohms	Weatherproof	188 188A 316 LMR-100 M17/119-RG174 RG-174	Jack Male Pin	1	Brass	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut	Solder	Bulkhead - Front Side Nut	500	Gold	-65 ░C	165 °C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount Solder
