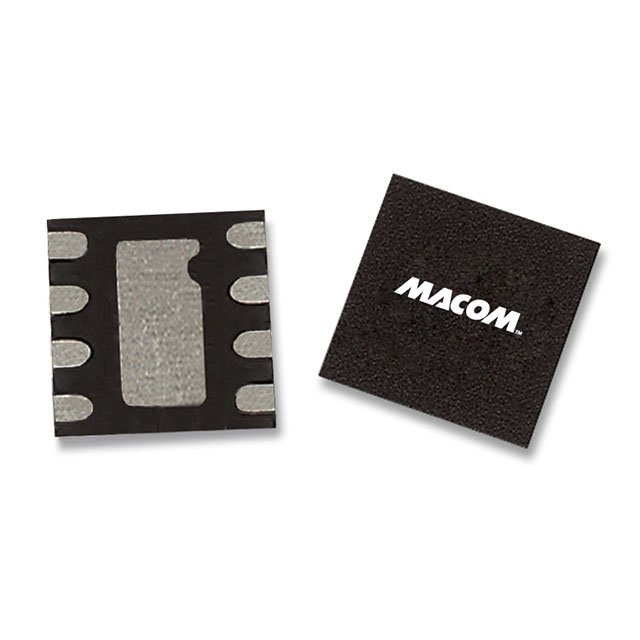

MAAM-011117-TR3000
ActiveMACOM Technology Solutions
IC RF AMP GPS 50MHZ-2.7GHZ 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAAM-011117-TR3000
ActiveMACOM Technology Solutions
IC RF AMP GPS 50MHZ-2.7GHZ 8DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAAM-011117-TR3000 |
|---|---|
| Current - Supply | 85 mA |
| Frequency [Max] | 2.7 GHz |
| Frequency [Min] | 50 MHz |
| Gain | 17.2 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 3 dB |
| P1dB | 19.5 dBm |
| Package / Case | 8-VFDFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 8-PDFN (2x2) |
| Test Frequency | 1 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.43 | |
| 10 | $ 2.17 | |||
| 25 | $ 1.95 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.52 | |||
| Digi-Reel® | 1 | $ 2.43 | ||
| 10 | $ 2.17 | |||
| 25 | $ 1.95 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.52 | |||
| Tape & Reel (TR) | 3000 | $ 1.52 | ||
Description
General part information
MAAM-011117 Series
RF Amplifier IC General Purpose 50MHz ~ 2.7GHz 8-PDFN (2x2)
