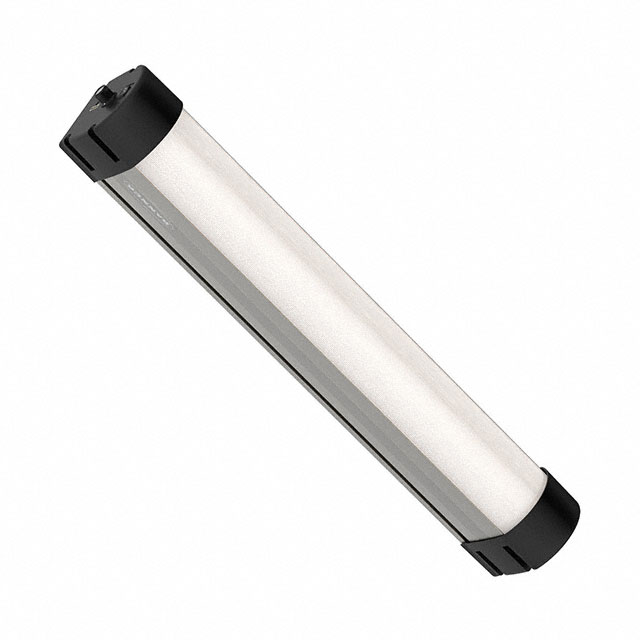

WLB92ZC550PBQMB

Active

BANNER ENGINEERING

WORK LIGHT DIMMABLE 550MM

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORK LIGHT DIMMABLE 550MM

Technical Specifications

Parameters and characteristics for this part

Specification	WLB92ZC550PBQMB

Approval Agency	cULus, CE
Features	Dimmable, On/Off Switch, Cascadable
Housing Material	Aluminum (Al)
Illumination Color	White, Cool
Ingress Protection	IP40
Length [x]	21.65 in
Length [x]	550 mm
Lens Type	Tubular, Diffused
Luminous Flux	3510 lm
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-35 °C
Profile (W x H) [x]	97 mm
Profile (W x H) [x]	3.82 in
Profile (W x H) [y]	4.09 in
Profile (W x H) [y]	104 mm
Rated Life	50000 Hours
Termination Style	Connector
Voltage - Supply	120 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Profile (W x H) [y]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [x]	Voltage - Supply	Lens Type	Features	Ingress Protection	Luminous Flux	Length [x]	Length [x]	Termination Style	Rated Life	Illumination Color	Approval Agency
BANNER ENGINEERING WLB92ZC550PBQMB	50 °C	-35 °C	Aluminum (Al)	4.09 in	104 mm	97 mm	3.82 in	120 VAC	Diffused Tubular	Cascadable Dimmable On/Off Switch	IP40	3510 lm	21.65 in	550 mm	Connector	50000 Hours	Cool White	CE cULus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 502.00
Newark	Each	1	$ 511.00

General part information

WORK LIGHT DIMMABLE 550MM

Technical documentation and resources
