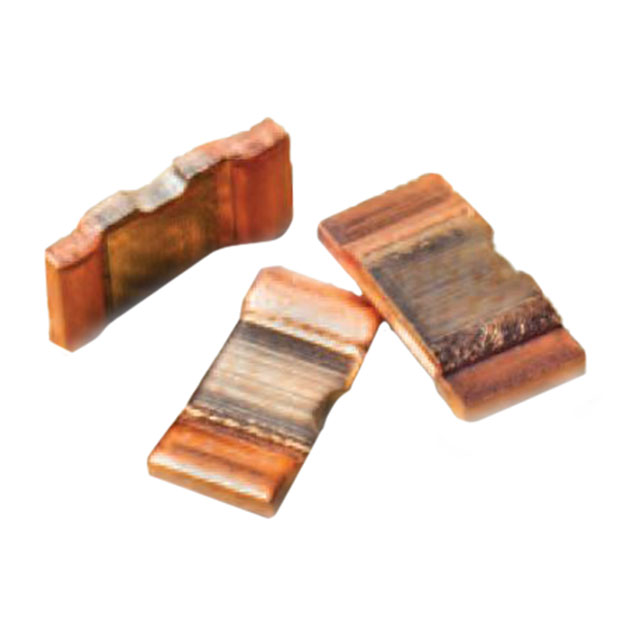

PSL2NTEBL500F
ActiveKOA Speer Electronics, Inc.
RES 500 UOHM 1% 8W NONSTANDARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSL2NTEBL500F
ActiveKOA Speer Electronics, Inc.
RES 500 UOHM 1% 8W NONSTANDARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSL2NTEBL500F |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 1.27 mm |
| Height - Seated (Max) [Max] [z] | 0.05 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Nonstandard |
| Power (Watts) | 8 W |
| Ratings | AEC-Q200 |
| Resistance | 0.5 mOhms |
| Size / Dimension [x] | 6.3 mm |
| Size / Dimension [x] | 0.248 in |
| Size / Dimension [y] | 0.124 " |
| Size / Dimension [y] | 3.15 mm |
| Temperature Coefficient | 115 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.59 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.18 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.59 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.18 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.60 | |||
| Tape & Reel (TR) | 5000 | $ 0.58 | ||
| 10000 | $ 0.57 | |||
Description
General part information
PSL2NT Series
0.5 mOhms ±1% 8W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
