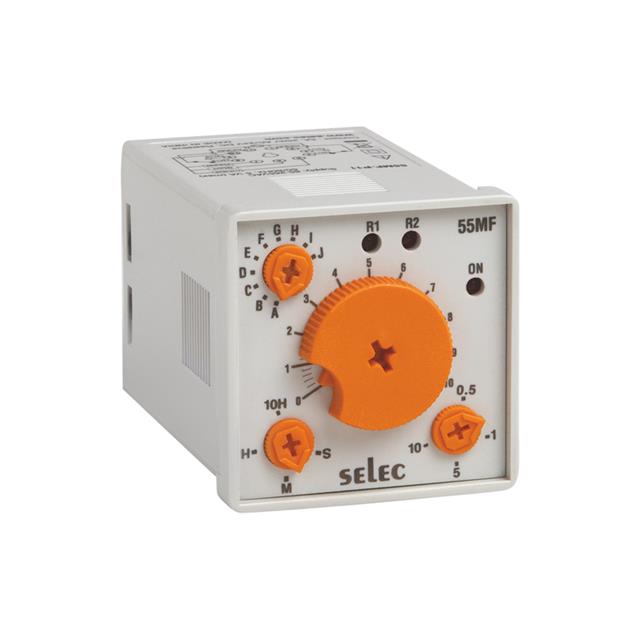

55MFT-P8-CU

Active

Selec Controls USA Inc.

RELAY TIME DELAY 300HR 6A 250V

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

RELAY TIME DELAY 300HR 6A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	55MFT-P8-CU	55MFT Series

Circuit	2	2
Contact Rating @ Voltage	6 A	6 A
Delay Time [Max]	300 Hrs	30 - 300 Hrs
Delay Time [Min]	0.05 Sec	0.05 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	Socketable	Socketable
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal), Plug In, 11 Pin (Octal)
Timing Adjustment Method	Screwdriver Slot	Screwdriver Slot
Timing Initiate Method	Input Voltage	Input Voltage, Trigger Signal
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	20 VAC	20 VAC

RELAY TIME DELAY 300HR 6A 250V

Part	Relay Type	Termination Style	Circuit	Voltage - Supply [Max]	Voltage - Supply [Min]	Timing Adjustment Method	Mounting Type	Contact Rating @ Voltage	Delay Time [Max]	Delay Time [Min]	Function	Timing Initiate Method
Selec Controls USA Inc. 55MFT-P8-CU	Mechanical Relay	Plug In, 8 Pin (Octal)	2	240 VAC	20 VAC	Screwdriver Slot	Socketable	6 A	300 Hrs	0.05 Sec	Programmable (Multi-Function)	Input Voltage
Selec Controls USA Inc. 55MFT-P11-CU	Mechanical Relay	Plug In, 11 Pin (Octal)	2	240 VAC	20 VAC	Screwdriver Slot	Socketable	6 A	30 Hrs	0.05 Sec	Programmable (Multi-Function)	Input Voltage, Trigger Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 32.55

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) x 2 0.05 Sec ~ 300 Hrs Delay 6A @ 250VAC/24VDC Socketable

Technical documentation and resources

No documents available
