REFILD6150DC60V1ATOBO1

Obsolete

Infineon Technologies

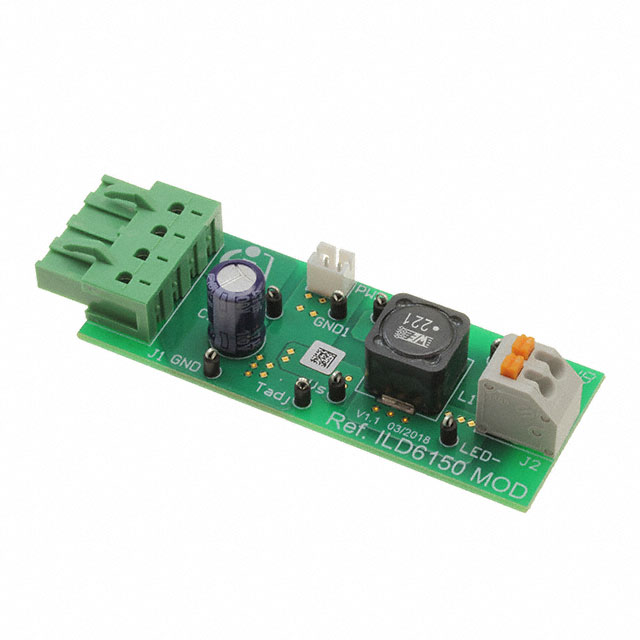

EVAL ILD6150 DC 60V 1A

Search across all available documentation for this part.

Obsolete

Infineon Technologies

EVAL ILD6150 DC 60V 1A

Technical Specifications

Parameters and characteristics for this part

Specification	REFILD6150DC60V1ATOBO1

Current - Output / Channel [custom]	1 A
Features	Dimmable
Outputs and Type	Non-Isolated
Outputs and Type	1
Supplied Contents	Board(s)
Utilized IC / Part	ILD6150
Voltage - Input [Max]	60 V
Voltage - Input [Min]	4.5 V
Voltage - Output [Max]	57 V
Voltage - Output [Min]	3 V

Part	Dimming	Internal Switch(s)	Frequency	Mounting Type	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Supply (Min) [Min]	Current - Output / Channel	Topology	Number of Outputs	Applications	Outputs and Type	Outputs and Type	Supplied Contents	Current - Output / Channel [custom]	Features	Utilized IC / Part	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input [Max]	Voltage - Input [Min]
Infineon Technologies ILD6150XUMA1	Analog PWM		1 MHz	Surface Mount	0.154 in	8-SOIC	3.9 mm	150 °C	-40 °C	DC DC Regulator	4.5 V	1.5 A	Step-Down (Buck)	1	Lighting
Infineon Technologies REFILD6150DC60V1ATOBO1																Non-Isolated	1	Board(s)	1 A	Dimmable	ILD6150	57 V	3 V	60 V	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.35

General part information

ILD6150 1, Non-Isolated Outputs LED Driver Evaluation Board
