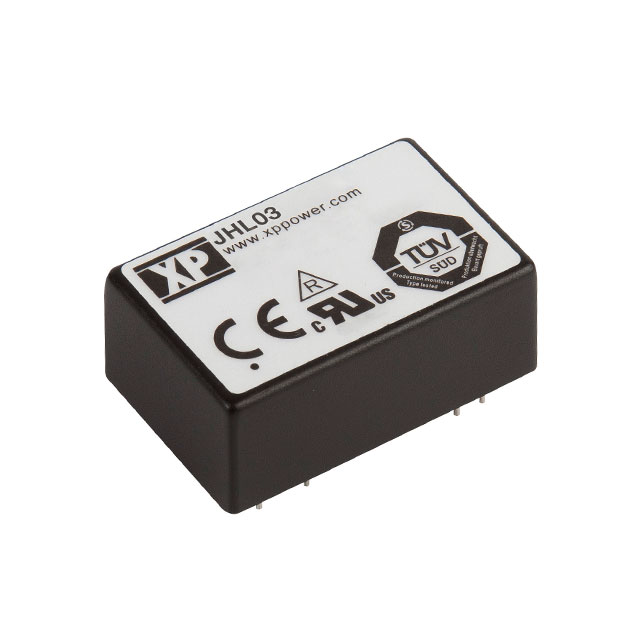

JHL0324S12
ActiveXP POWER
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JHL0324S12
ActiveXP POWER
DC DC CONVERTER 12V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JHL0324S12 |
|---|---|
| Applications | Medical |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 75 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 24-DIP Module, 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 20 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 37.03 | |
| 5 | $ 35.92 | |||
| 10 | $ 34.81 | |||
| 25 | $ 33.33 | |||
| 100 | $ 31.11 | |||
Description
General part information
JHL0324 Series
Isolated Module DC DC Converter 1 Output 12V 250mA 20V - 30V Input
