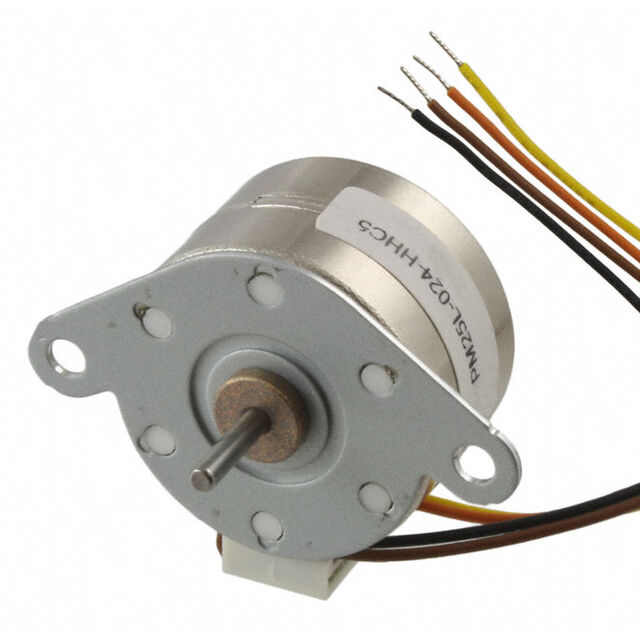

PM25L-024-HHC5

Active

NMB TECHNOLOGIES

STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 25 MN-M, 600 MA

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 25 MN-M, 600 MA

Technical Specifications

Parameters and characteristics for this part

STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 25 MN-M, 600 MA

Part	Coil Type	Step Angle	Coil Resistance	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Current Rating (Amps)	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Voltage - Rated	Termination Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Steps per Revolution	Mounting Hole Spacing	Mounting Hole Spacing	Features
NMB TECHNOLOGIES PM25L-024-HHC5	Bipolar	15 °	8 Ohms	2 mm	0.079 in	600 mA	26 mNm	3.7 oz-in	24 VDC	Wire Leads	0.984 "	25 mm	Permanent Magnet	0.394 in	10 mm	24	1.26 in	32 mm	Round Shaft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Permanent Magnet Frame Size 24.0 Step 600 mA 24VDC
