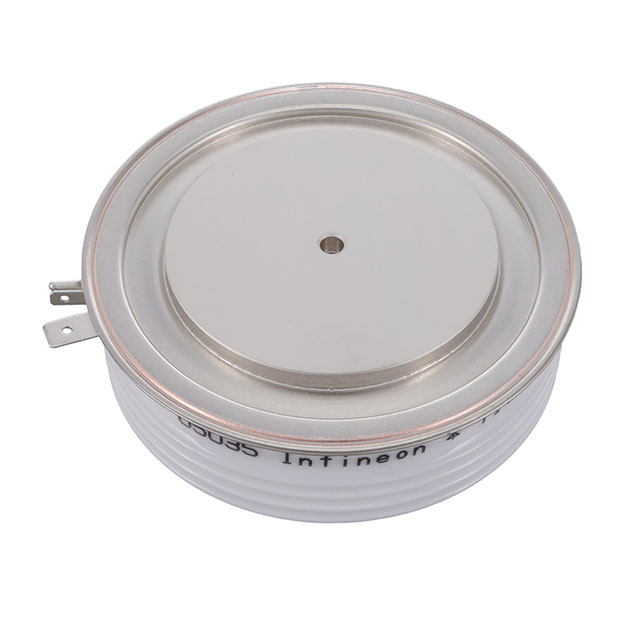

T1900N18TOFVTXPSA1
ActiveInfineon Technologies
THE T1900N18TOF VT IS A 1800 V 1810 A PHASE CONTROL THYRISTOR DISC
Deep-Dive with AI
Search across all available documentation for this part.
T1900N18TOFVTXPSA1
ActiveInfineon Technologies
THE T1900N18TOF VT IS A 1800 V 1810 A PHASE CONTROL THYRISTOR DISC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T1900N18TOFVTXPSA1 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 250 mA |
| Current - Hold (Ih) (Max) [Max] | 500 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 39000 A |
| Current - On State (It (AV)) (Max) [Max] | 1810 A |
| Current - On State (It (RMS)) (Max) [Max] | 2840 A |
| Mounting Type | Clamp On |
| Number of SCRs, Diodes | 1 SCR |
| Operating Temperature | 135 °C |
| Package / Case | TO-200AC |
| Structure | Single |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 2 V |
| Voltage - Off State | 1.8 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T1900N Series
Phase Control Thyristor1800 V, 1810 A with 75 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T1900N prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.
