YB25WSKW01-6G-JB
ActiveNKK Switches

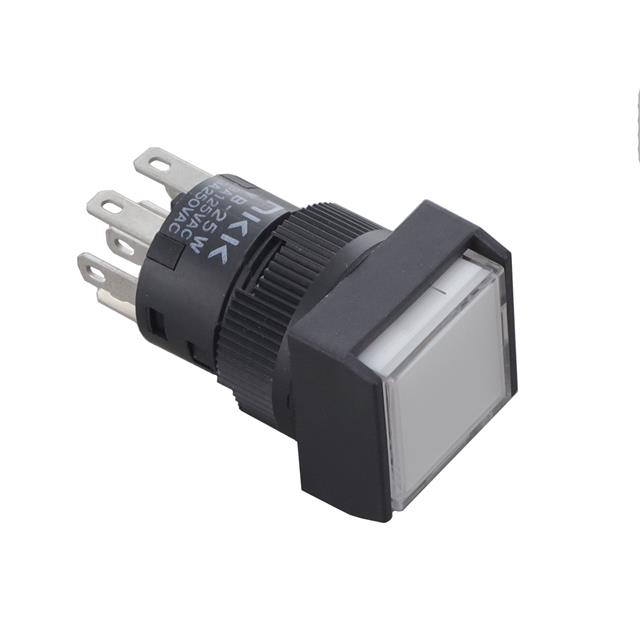

SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YB25WSKW01-6G-JB
ActiveNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YB25WSKW01-6G-JB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | DPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Voltage Reduction Lighting |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.6 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
YB25WS Series
| Part | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Color - Actuator/Cap | Actuator Type | Actuator Marking | Circuit | Ingress Protection | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Voltage (Nominal) | Type | Illumination Type, Color | Switch Function | Features | Mounting Type | Termination Style | Termination Style | Termination Style | Mechanical Life | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 16 mm | 28 V | Clear | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 28 V | 5 VDC | Illuminated Standard | Amber LED | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 0.4 VA |
NKK Switches | 16 mm | 30 V | Clear | Button Square | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 125 V | 2 VDC | Illuminated Standard | Amber LED | On-Mom | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 3 A | ||
NKK Switches | 16 mm | 30 V | Plunger for Cap | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 70 °C | -25 °C | 125 V | Standard | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 3 A | |||
NKK Switches | 16 mm | 30 V | Clear (Red Filter/Diffuser) | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 125 V | 24 V | Illuminated Standard | LED Red | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 3 A |
NKK Switches | 16 mm | 30 V | Clear | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 125 V | 3.6 VDC | Illuminated Standard | Blue LED | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 3 A |
NKK Switches | 16 mm | 30 V | Clear | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 125 V | 24 V | Illuminated Standard | Green LED | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 3 A |
NKK Switches | 16 mm | 30 V | Clear | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 125 V | 5 VDC | Illuminated Standard | Green LED | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 3 A |
NKK Switches | 16 mm | 30 V | Clear | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 125 V | 12 VDC | Illuminated Standard | Amber LED | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 3 A |
NKK Switches | 16 mm | 28 V | Clear | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 50 °C | -25 °C | 28 V | 12 VDC | Illuminated Standard | Green LED | On-Mom | Voltage Reduction Lighting | Panel Mount Front | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 0.4 VA |
NKK Switches | 16 mm | 30 V | Clear | Button Square | No Marking | DPDT | IP65 - Dust Tight Water Resistant | 100000 Cycles | 70 °C | -25 °C | 125 V | 2 VDC | Illuminated Standard | Green/Red LED | On-Mom | Voltage Reduction Lighting | Panel Mount Front | Solder Lug | 1000000 Cycles | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YB25WS Series
Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
