6803135141F

Active

DIALIGHT

10MM HR/R PMI-24VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HR/R PMI-24VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6803135141F	6803135 Series

Current	30 mA	30 mA
Lamp Color	Red	Red
Lens Size	-	12 mm
Millicandela Rating	1530 mcd	335 - 2100 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.4 mm
Panel Cutout Dimensions	-	10.3 mm
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions [diameter]	0.41 in	0.41 in
Panel Cutout Dimensions [diameter]	10.41 mm	10.41 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	6 - 24 V
Wavelength - Peak	-	624 nm

10MM HR/R PMI-24VDC

Part	Voltage	Current	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Shape	Millicandela Rating	Lamp Color	Type	Ratings	Wavelength - Peak	Viewing Angle	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6803135241F	24 V	30 mA	0.37 in	9.4 mm	Round	335 mcd	Red	LED	DC
DIALIGHT 6803135221F	6 V	30 mA				2100 mcd	Red	LED	DC	624 nm	30 °
DIALIGHT 6803135231F	12 V	30 mA				2100 mcd	Red	LED	DC	624 nm	30 °
DIALIGHT 6803135121F	6 V	30 mA			Round	2100 mcd	Red	LED	DC	624 nm	30 °	10.3 mm	0.41 in	12 mm
DIALIGHT 6803135141F	24 V	30 mA			Round	1530 mcd	Red	LED	DC						0.41 in	10.41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

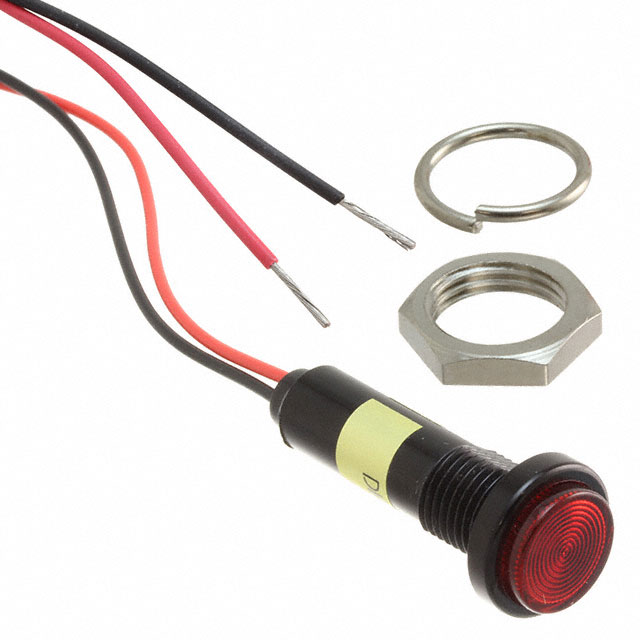

LED Panel Indicator Red 24V 30mA Wire Leads - 6" (152.40mm)
