JN2FW15SL1

Active

JAE Electronics

CONN PLG HSG FMAL 15PS INLINE RA

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLG HSG FMAL 15PS INLINE RA

Technical Specifications

Parameters and characteristics for this part

Specification	JN2FW15SL1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell, Rotatable
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Finish	Zinc
Shell Material	Zinc Alloy
Shell Size - Insert	W
Shielding	Unshielded
Type	For Female Sockets

Part	Note	Insert Material	Number of Positions	Mounting Type	Orientation	Ingress Protection	Contact Shape	Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Type	Fastening Type	Shielding	Features	Shell Material	Shell Size - Insert	Contact Size	Housing Color	Shell Finish
JAE Electronics JN2FW15SL1	Contacts Not Included	Synthetic Resin	15	Free Hanging (In-Line) Right Angle	N	IP67 - Dust Tight Waterproof	Circular	For Female Sockets	100 °C	-20 C	Crimp	Plug Housing	Push-Twist	Unshielded	Backshell Coupling Nut Rotatable	Zinc Alloy	W	22	Black	Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

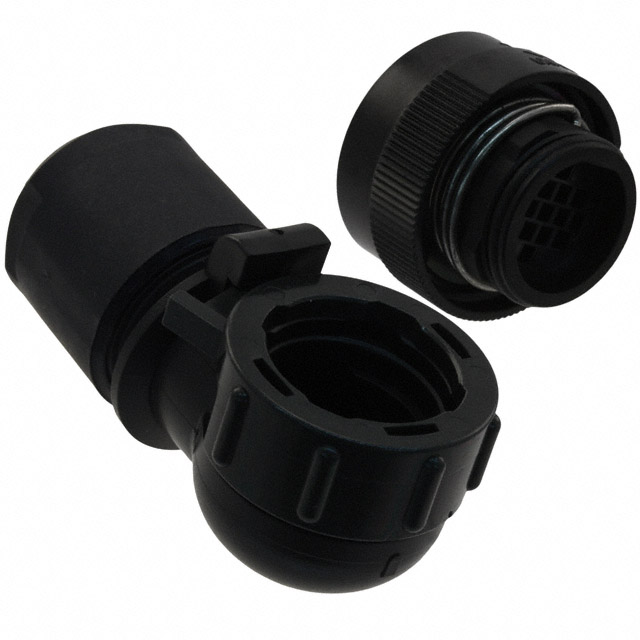

15 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable
