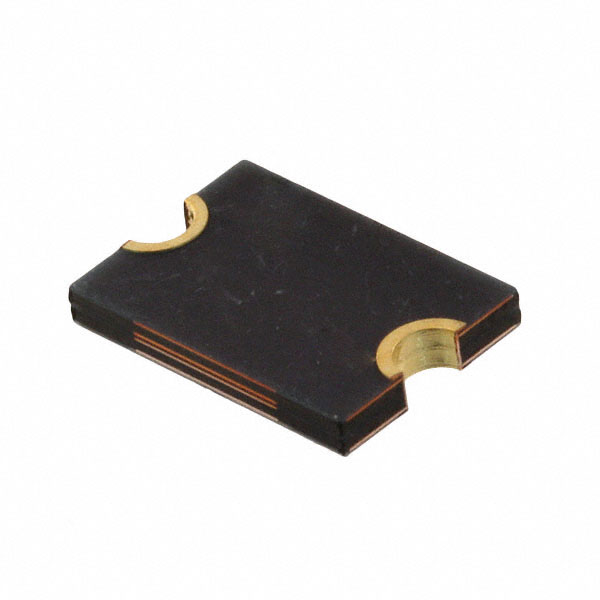

MF-LSMF260X-2
ActiveBourns Inc.
PTC RESETTABLE FUSE 2.6A(HOLD) 5.2A(TRIP) 24V 40A 1.5W 5S 0.02OHM SMD SOLDER PAD 2920 T/R AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
MF-LSMF260X-2
ActiveBourns Inc.
PTC RESETTABLE FUSE 2.6A(HOLD) 5.2A(TRIP) 24V 40A 1.5W 5S 0.02OHM SMD SOLDER PAD 2920 T/R AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MF-LSMF260X-2 |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) [Max] | 2.6 A |
| Current - Max [Max] | 20 A |
| Current - Trip (It) | 5.2 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2920 (7351 Metric), Concave |
| Resistance - Initial (Ri) (Min) [Min] | 20 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 75 mOhms |
| Size / Dimension [x] | 0.289 in |
| Size / Dimension [x] | 7.36 mm |
| Size / Dimension [y] | 5.12 mm |
| Size / Dimension [y] | 0.202 " |
| Thickness (Max) [Max] | 1.6 mm |
| Thickness (Max) [Max] | 0.063 in |
| Time to Trip | 5 s |
| Type | Polymeric |
| Voltage - Max [Max] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.97 | |
| 5 | $ 0.94 | |||
| 10 | $ 0.88 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.61 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 0.97 | ||
| 5 | $ 0.94 | |||
| 10 | $ 0.88 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.61 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.44 | |||
| Tape & Reel (TR) | 4000 | $ 0.38 | ||
Description
General part information
MF-LSMF Series
Polymeric PTC Resettable Fuse 24V 2.6 A Ih Surface Mount 2920 (7351 Metric), Concave
